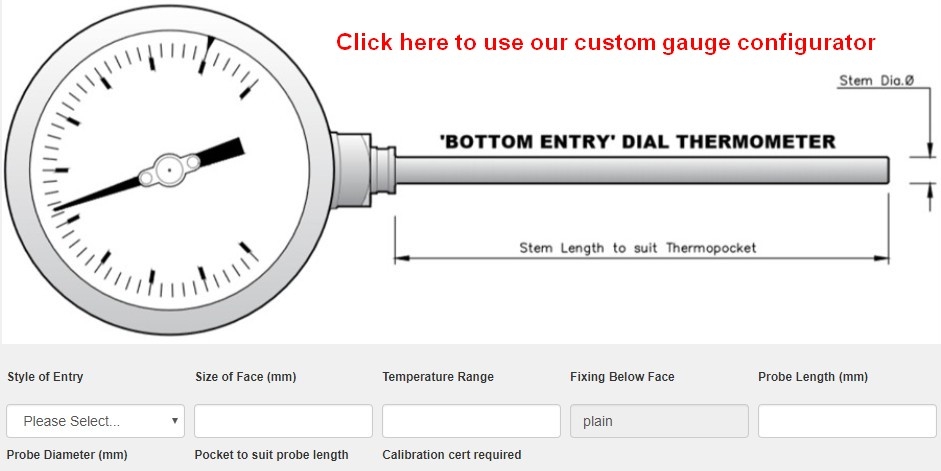

Bi-Metal Thermometer Temperature Gauges - Bottom Entry Style with 1/2" BSP Pocket

Details

**Chemical–Boilers–Ovens–Freezers–Tankers-Food-Drinks-Dairy-Brewing-Temperature Controlled Environments**

Rugged industrial class 1, stainless steel case and bayonet bezel with 316 stainless steel stems. Manufactured in 100mm face sizes with Various lengths and diameters available. Temperature Ranges from -20°C to 200°C.

1 year guarantee offered for working parts / default - Micro Adjustable Pointer
Optional Certificate of Calibration
Custom made to order in approximately 4 weeks. You will be contacted after placing your order with a lead time for delivery.

**See Specification tab for full details**

Accuracy	Class 1 (1% F.S..D.)
Dial Size	100mm
Construction	Flush fitting bayonet locking case and bezel
Measuring Element	Bi-Metalic coil
Ranges °C	-20 to +40°C, 0 to +100°C, 0 to +120°C, 0 to +200°C
Over Limit Range	130% full scale
Stem / Bulb	316 Stainless steel
Case / Bezel ring	Stainless steel AISI 316L
Window	Glass
Dial	Aluminium, black figures on white
Pointer	Aluminium, black
Movement	Direct drive on bottom entry
Ambient Temperature	-10°C....+50°C
Temperature Effect	max...0,3% / 10°C
Protection EN 60 529	IP65
