CAL MAXVU - Temperature and Process Controller (see below for ordering codes)

MAXVU has been designed to offer essential temperature control in a device that’s easy to install, fast to program and with improved display visibility.

MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed,it offers a universal input and up to 3 outputs with a choice of either relay or SSR.

Typical applications include packaging processes such as sealers and many more.

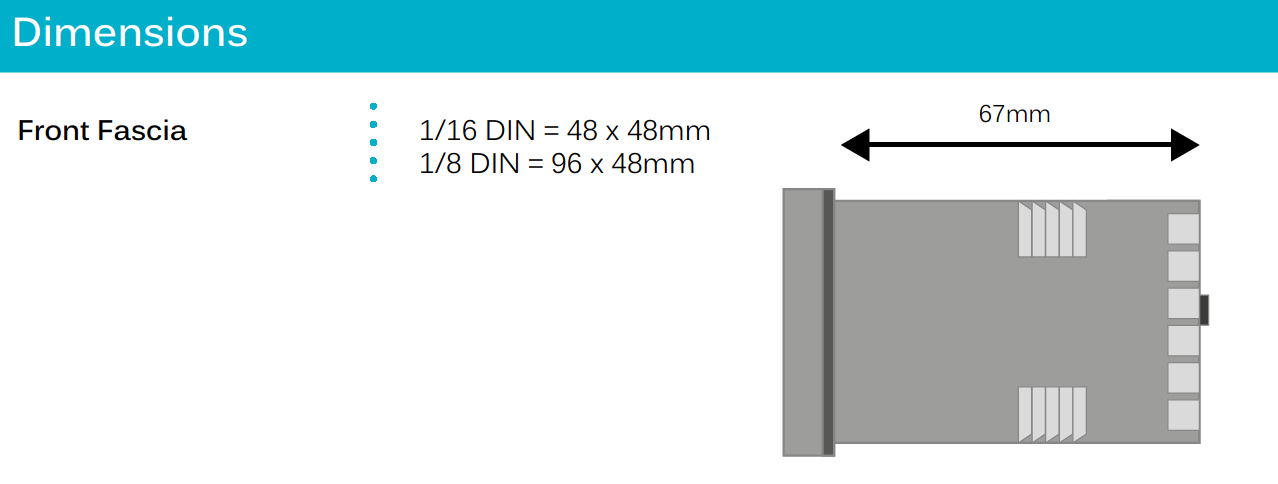

Dimensions CAL

See Datasheet for full specifications

Key Features

• 1/8 DIN (96 x 48mm) and 1/16 DIN (48 x 48mm)
• Universal input
• Up to 3 outputs
• RS485 communications option
• Fast configuration
• Large clear display
• Depth 67mm
• High visibility 18mm display digits (10.2mm lower display 1/16 DIN)
• Quick setup menu with top 10 configuration parameters
• Thermocouple, PT100 or linear DC sensor input
• Up to 3 outputs, relay or SSR
• 2 process alarms, high/low, deviation or band.
• 3 button operation
• 2 x 4 digit display and 3 output status LEDs
• Front panel configuration or via PC configuration software
• RS485 Modbus RTU communications

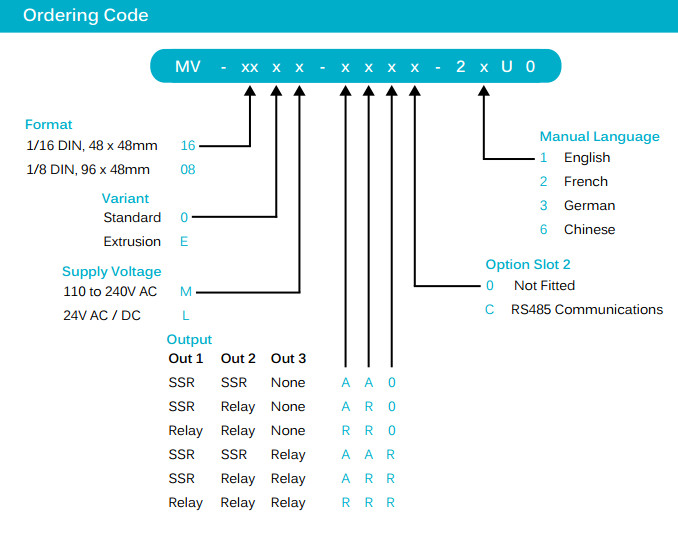

CAL ordering codes
