Melt Bolt Thermocouple Type K or J IEC

Change Currency

SKU
XE-3922
£55.45 £46.21
Lead Time:
Select Options
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

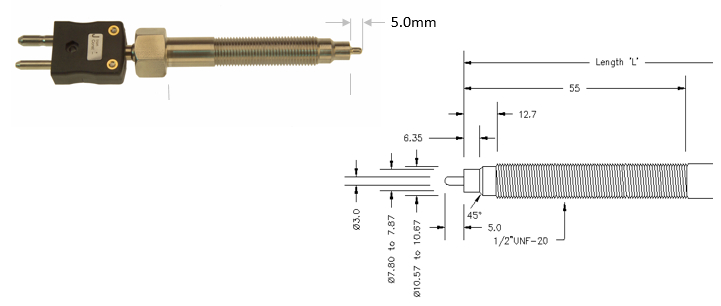

General Description Designed to withstand high pressure applications experienced with molten plastics & polymers
Sensor Type Typically used in plastics extruders and injection moulders
Thermocouple Type K or J
Thermocouple Junction Insulated hot junction
Probe Diameter 3mm
Probe Length 5mm (76mm or 152mm bolt lengths)
Sheath Material Stainless steel
Termination Type Standard plug termination (round pin)
Max. Temperature +500°C
Tolerance Tolerance & colour code in accordance with IEC-584 specification
Thread 1/2”UNF-20 thread
