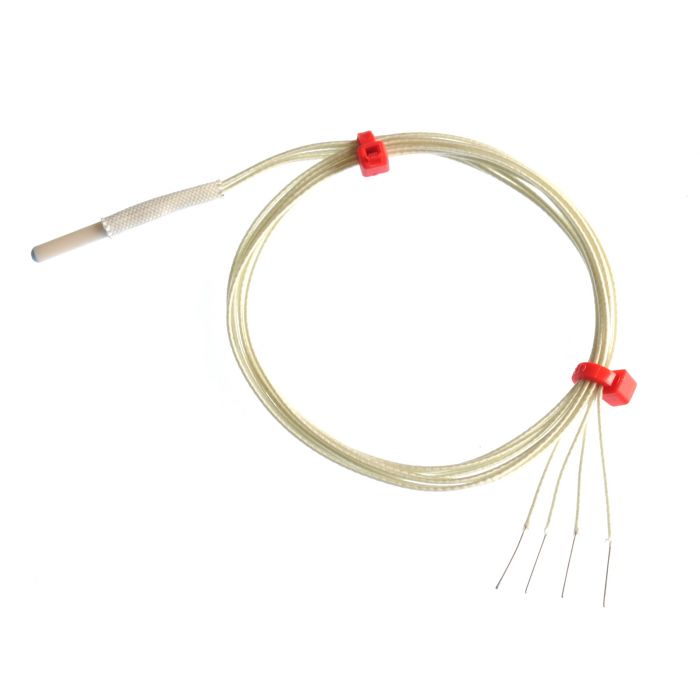

Platinum Resistance Detectors with extended leads, Wire-Wound Ceramic

  • Ceramic Wire-Wound - Pt100 Ohm
  • Wire-wound construction, Class B
  • High stability
  • 300, 500 or 1000mm extended lead lengths (Glass-fibre insulated)
  • 2 or 4 wire configuration
  • Range of use –50°C to +350°C
  • Detector Dimensions: 2.8mm x 15mm
  • Optimum performance, suitable for air & immersion applications (where protected*)

Specifications:

  • Sensor type: Platinum Resistance, Pt100 Ohm
  • Construction: Platinum coil wire-wound construction sealed inside a high purity alumina ceramic body
  • Temperature range: -50°C to +350°C
  • Extended lead wire configuration: 2 or 4 wire
  • Extended lead wires: Glass-fibre insulated nickel, 300, 500 or 1000mm long
  • Ice point resistance: 100Ω Ohms
  • Fundamental interval (0°C to 100°C): 38.5Ω nominal (100Ω)
  • Tolerance class: Class B
  • European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008

*Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.

GBP EUR USD JPY
Excl. VAT: £23.50 Incl. VAT: £28.20

* Required Fields

Labfacility Part No:
XE-5593
Lead Time:
Select Options
Tariff Code:
90330000
Product Code
RA Style
Country of Origin:
United Kingdom
RoHS Compliant:
