Pt100 4 wire class B Resistance Thermometer, Compact KNS Head RTD / PRT

Pt100 4 wire class B Resistance Thermometer, Compact KNS Head RTD / PRT

Details

Pt100 4 wire class B Resistance Thermometer, Compact KNS Head With 1/2"BSP x 6mm fitting RTD / PRT

  • Pt100 probe with compact KNS terminal head
  • Class B, 4 wire connection
  • Various probe available lengths
  • 6.0mm diameter in 316 stainless steel
  • With Stainless steel 1/2" BSP X 6mm fitting
  • IP67 aluminium alloy weatherproof connection head
  • Sensor Temperature rating -100°C to +450°C
  • Conforms to IEC 751

Specifications

  • Sensor type: Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire
  • Construction: 6.0mm diameter stem in 316 stainless steel
  • Termination: IP67 KNS connection head
  • Process connection: 1/2"BSP x 6mm
  • Probe temperature range: -100°C to +450°C (connection head @ 170°C)

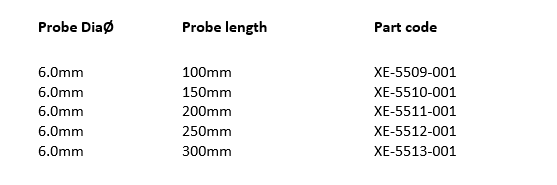

Table of Data

GBP EUR USD JPY
Excl. VAT: £49.10 Incl. VAT: £58.92

* Required Fields

Labfacility Part No:
XE-5510
Lead Time:
Select Options
Tariff Code:
90330000
Product Code
RC Style
Country of Origin:
United Kingdom
RoHS Compliant:

Information - Need Calibration? Call us on +44 (0) 1243 871280
