Twist Melt Bolt Thermocouple Type J or K

Twist Melt Bolt Thermocouple Type J or K

Details

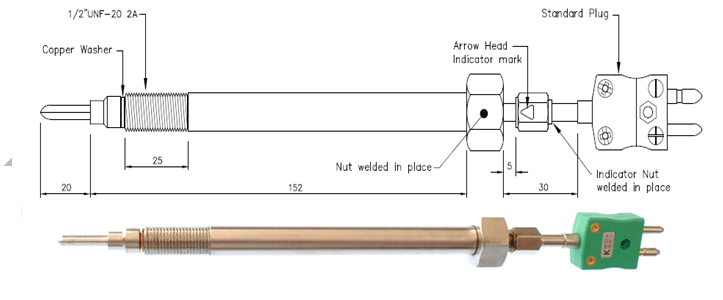

Twist Melt Bolt Thermocouple Type J or K

Type J or K with 20mm blade tip

  • Type ‘J’ or ‘K’ twist melt bolt thermocouple
  • Rotational blade style tip allowing correct postioning for reduced resistance in the melt flow
  • Widely used in plastics extruders and injection moulders
  • Designed to withstand high pressure applications experienced with molten plastics & polymers
  • Stainless steel bolt with 1/2”UNF-20 2A thread
  • 152mm stem length
  • 20mm long blade tip immersion length
  • Temperature range to 400°C
  • Grounded hot junction
  • Standard plug termination (round pin)
  • Tolerance & colour code in accordance with IEC-584 specification

GBP EUR USD JPY
Excl. VAT: £137.11 Incl. VAT: £164.53

* Required Fields

Labfacility Part No:
XE-5531
Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
United Kingdom
RoHS Compliant:
