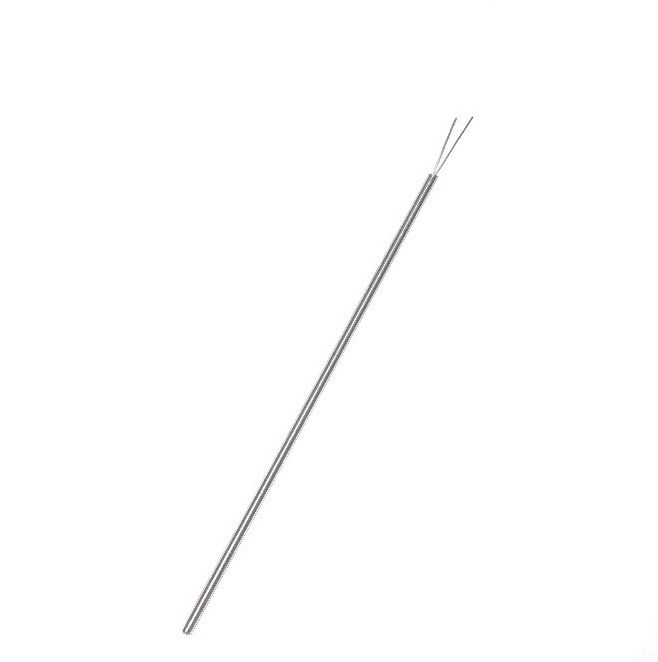

0.25mm Diameter Fast Response Mineral Insulated Thermocouple with Bare Leads - Type K

Change Currency

SKU
XE-0818
£21.00 £17.50

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Origin:
GB
RoHS Compliant:

Please use our custom sensor forms to submit your requirements for various lengths of MI and Cable lengths.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order, this will add 2-3 days lead time to your order.

General DescriptionHighly flexible, sheath can be bent/formed to suit many applications and processes
Sensor TypeType K IEC STYLE probes 0.25mm
Thermocouple JunctionSingle element, junction insulated or grounded
Probe Length100mm / 150mm / 250mm
Sheath MaterialStainless steel 316 sheath
Pot Type500mm PFA insulated twin twisted IEC - 7/0.2mm
Termination TypeBare Leads
RangeSensor range -40 to +260°C
Important InformationA 1%+ Length Tolerance applies
