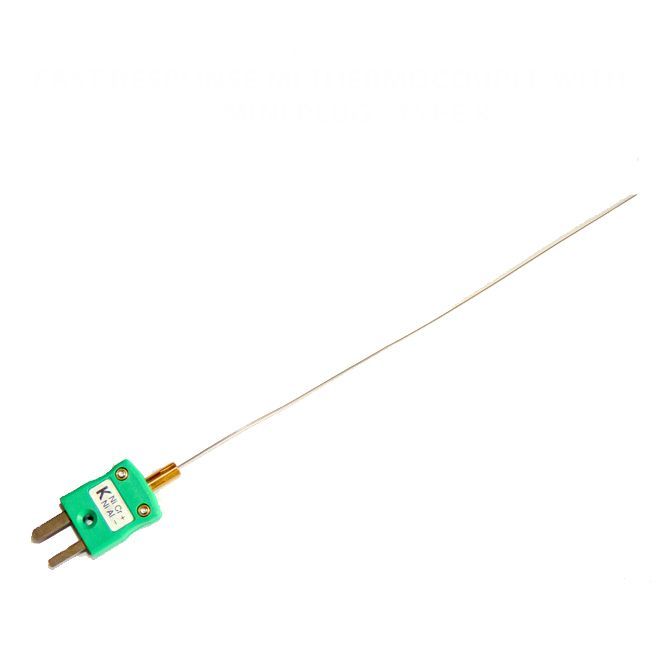

0.5mm Fast Response Mineral Insulated Thermocouples with Miniature IEC Plug - Grounded Junction - 150mm
Change Currency
SKU
XE-3200-001
£44.87
£37.39
- Buy 2+ for £36.31 £30.26 each
Fast Response Mineral insulated thermocouple in type K. Various lengths available terminating with an IEC miniature plug (220°C) for quick, simple connection.
For 0.25mm, 0.75mm & 0.81mm diameter versions, please use our custom sensor forms to submit your requirements
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated or grounded from sheath |
| Probe Diameter | 0.5mm |
| Probe Length | 150mm |
| Sheath Material | Stainless steel 310 |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperature | +750°C. Plug Max. temperature range: 200°C |
| Min. Temperature | -40°C |
| Standards Met | IEC 584 |
| Connector Type | Plug |
| Connector Size | Miniature |
