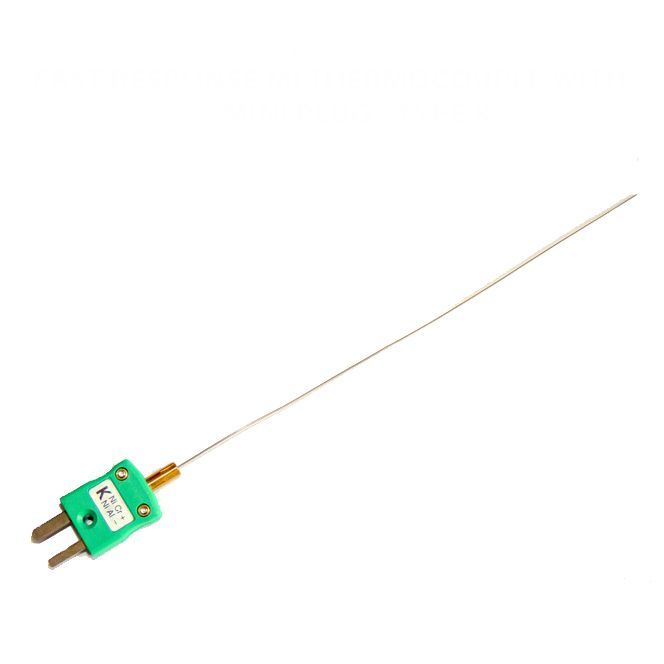

0.81mm Diameter Fast Response Thermocouple with Miniature IEC Plug - Insulated Junction - 150mm
Change Currency
SKU
XE-0240-001
£35.23
£29.36
- Buy 2+ for £33.47 £27.89 each
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. . |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated from sheath |
| Probe Diameter | 0.81mm |
| Probe Length | 150mm |
| Sheath Material | K - Stainless steel 316 |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperature | +650°C. Plug Max. temperature range: 200°C |
| Min. Temperature | -40°C |
| Tolerance | Class 1 |
| Standards Met | IEC 584 |
| Connector Type | Plug |
| Connection Type | Miniature |
