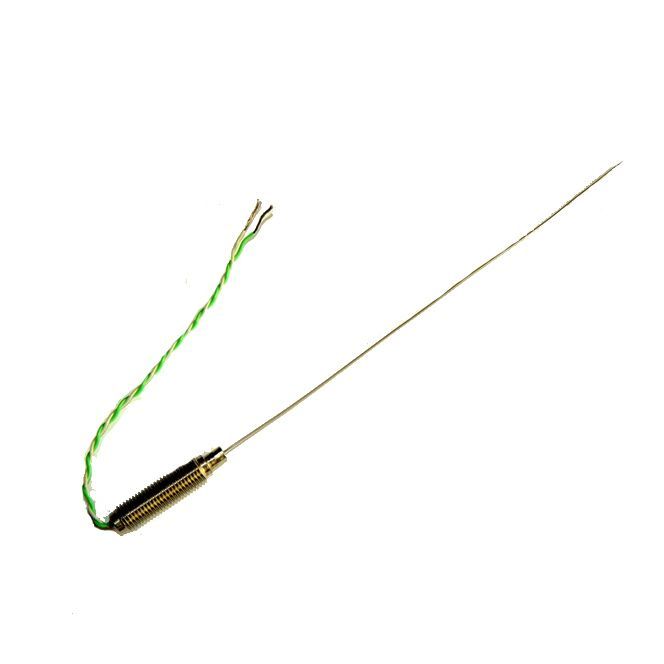

0.81mm Diameter Fast Response Thermocouple with IEC threaded pot & tails - Grounded Junction - 250mm
Change Currency
SKU
XE-0232-001
£36.88
£30.73
- Buy 2+ for £35.03 £29.19 each
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. . |
|---|
Specifications
| General Description | Type K with threaded pot & tails in 316 stainless steel |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction grounded from sheath |
| Probe Diameter | 0.81mm |
| Probe Length | 250mm |
| Sheath Material | 316 stainless steel |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Cable Length | 100mm |
| Cable Type | PFA insulated twin twisted IEC (Temp -75 TO +250°C) |
| Core / Strands | 7/0.2mm |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Gland | Bare Tails |
| Max. Temperature | +650°C |
| Min. Temperature | -40°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
| Connector Type | Plug |
| Connection Type | Miniature |
