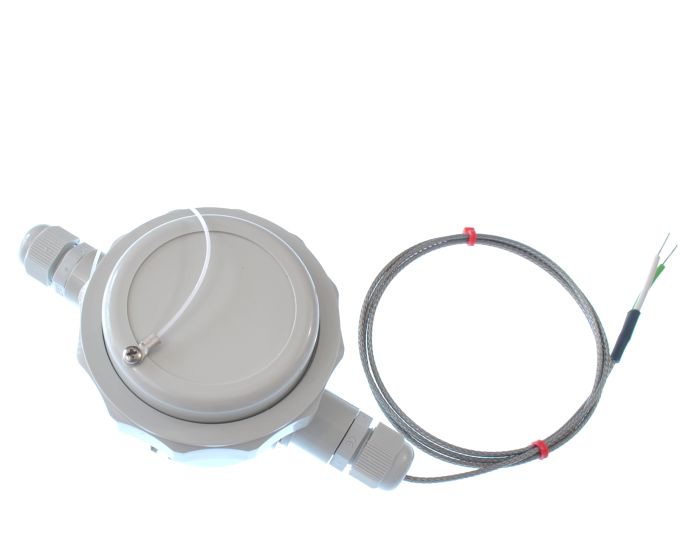

4-20mA remote wall mounted housing, Type K Thermocouple input 1 metre lead

Details

4-20mA remote wall mounted housing, Type K Thermocouple input 1 metre lead

4-20mA spec table

Compatible with type K (NC/NA) thermocouples
Surface Mounting for remote installation
4-20 mA output
Range 0-1000°C (transmitter can be re-ranged if desired)
Entry Threads M16
1 metre of type K 7/0.2 fibre glass cable with stainless steel overbraid

Housing moulded in general purpose ABS, the external fixing points provide a simple and rapid means of mounting sensors directly onto ducts, dispensing with the need for separate mounting plates.

Specifications

Head: High Impact ABS Plastic Construction
Transmitter: The push button temperature transmitter is a cost effective “smart” in head transmitter that accepts thermocouple temperature sensors and converts sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal. (transmitter device has an ambient range of -40°C to +85°C)
Cable: 1 metre of type K 7/0.2 fibre glass cable with stainless steel overbraid
Cable Termination: Bare tails

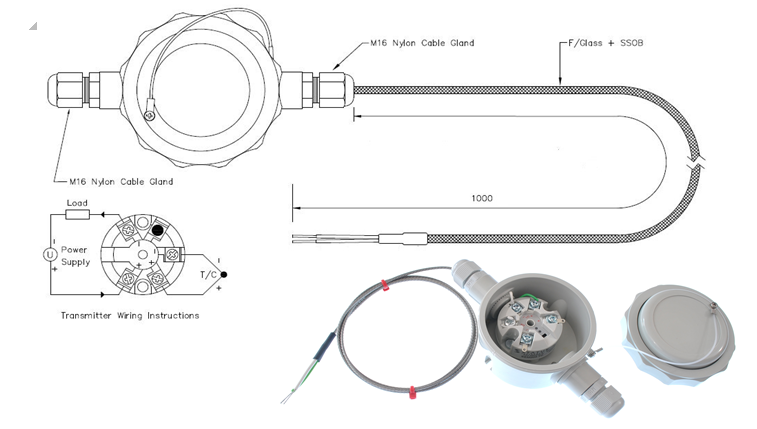

4-20mA Schematic
