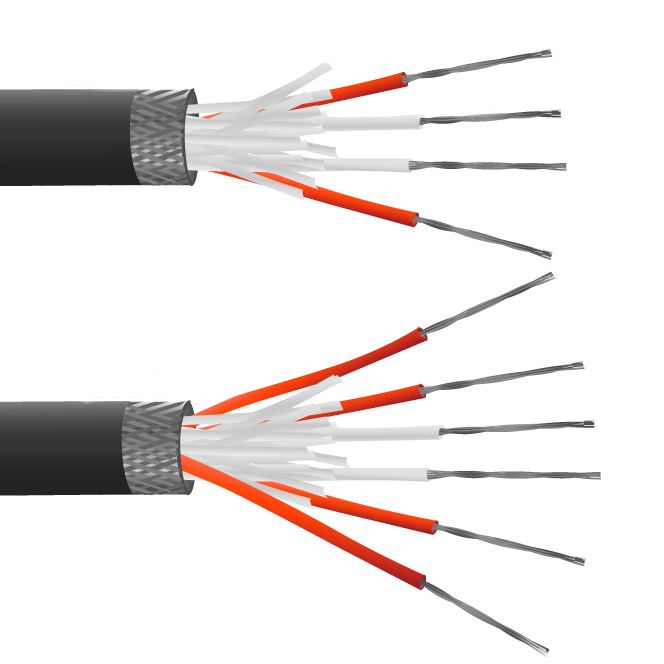

6 Core PFA Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire
Change Currency
6 Core PFA Insulated, Tin Plated Copper Screen, PRT Sensor Cable / Wire
High temperature to 260°C, extruded PFA Teflon® construction. Commonly used for Pt100Ω thermometers, also suitable with other types such as Pt130, Pt500 & Pt1000Ω
Specifications
| General Description | PFA insulated 7/0.2mm tin plated copper conductors, twisted cores with nylon cord, tin plated copper braided screen with PFA insulated outer jacket |
|---|---|
| Cable Length | 10, 25m, 50m |
| Cable Type | PFA Teflon® construction |
| Core / Strands | 7/0.2mm |
| Insulation Material | PFA Insulated |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| Number of Wires | 6 |
| Standards Met | Cores colour coded Red & White in accordance with IEC-751, black outer jacket |

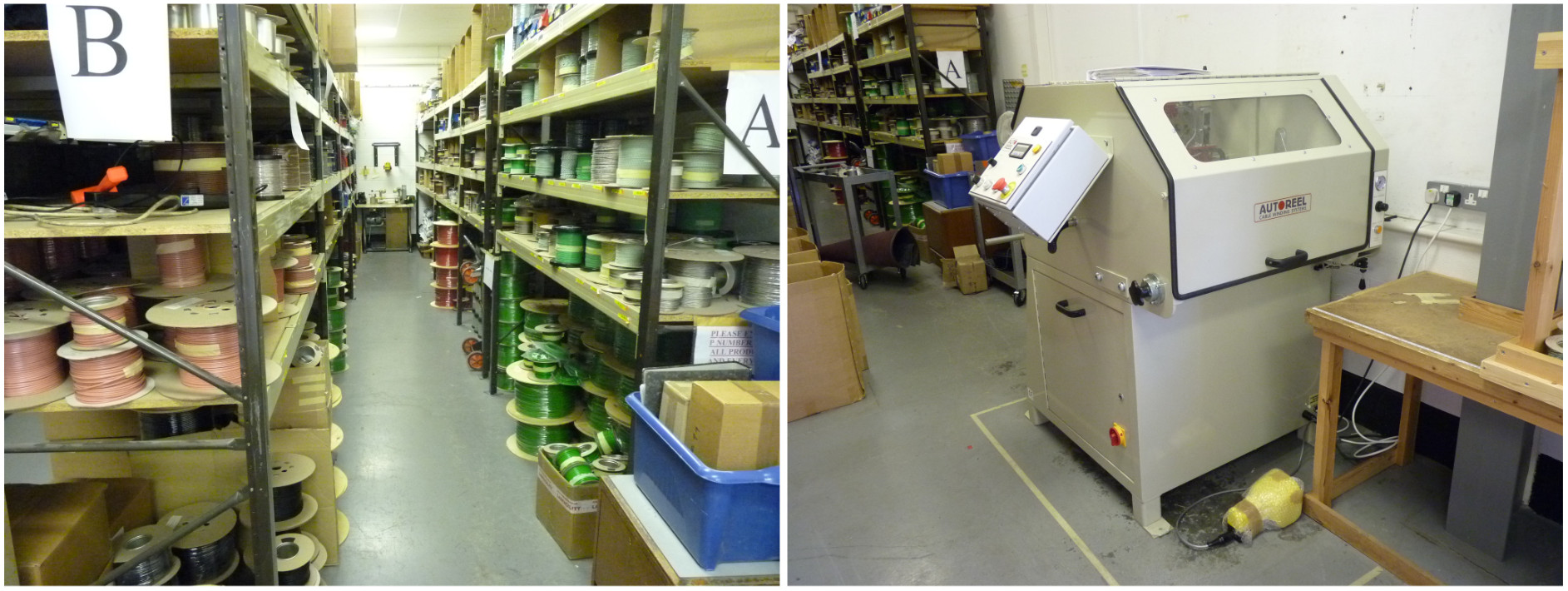

Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
