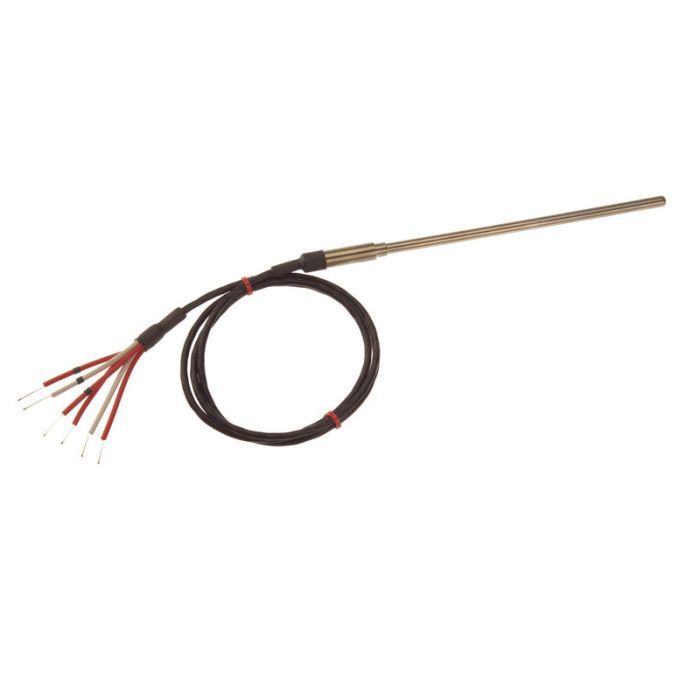

Dual Element Mineral Insulated Pt100 Probe With Extension Lead - 6.0mm Diameter - 150mm Length

Change Currency

SKU
XE-3695-001
£53.66 £44.72
  • Buy 2 - 4 for £50.98 £42.48 each
  • Buy 5+ for £48.29 £40.24 each

Maximum 30 characters

Maximum 40 characters

Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Mineral Insulated Duplex PRT’s with two independent PT100 detectors inside tip of probe. This allows one probe to be connected to two measurement or control devices; alternatively, one sensor may be used as a primary and the other as a backup, eliminating the need to remove and replace the probe if one of the sensors should fail.

  • High temperature, rugged, flexible Pt100 probe with dual element
  • Suitable for many industrial applications including high pressure, vacuum and vibration
  • Pt100 Class B, 2 x 3 wire connection
  • Flexible stainless steel sheath, 6.0mm diameter
  • Probe can be bent to enable fitting in awkward locations
  • 1 metre 6 core Teflon® insulated, screened lead
  • Sensor temperature rating -50°C to +500°C

Specifications

General Description Flexible mineral insulated probe, 316 stainless steel sheath
Sensor Type Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 2 x 3 wire
Probe Diameter 6.0mm
Probe Length 150mm
Termination Type 2 x 3 wire tails – allows connection to any 2 or 3 wire PT100 instrument
