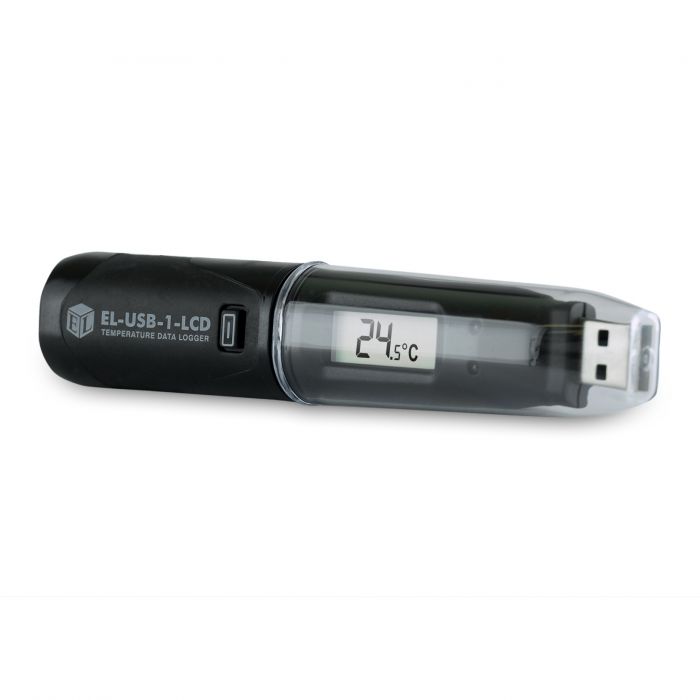

Lascar EL-USB-1-LCD - Temperature Data Logger with USB and Display

Change Currency

£68.39 £56.99
Lead Time:
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

Data Logger has been designed to simplify and speed up the daily task of maintaining an accurate record of pharmaceutical fridge temperatures.

This standalone data logger measures more than 16,000 readings over a -35 to +80°C (-31 to +176°­­F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session.

Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

The EL-USB-1-LCD is suitable for a wide variety of applications. These include:

  • Transportation
  • Food & Drink
  • Building and Site Monitoring
  • Pharmaceutical Fridge Monitoring
  • USB software, compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10


General Description The EL-USB-1-LCD is suitable for a wide variety of applications. These include Transportation, Food & Drink , Building and Site Monitoring, Pharmaceutical Fridge Monitoring.
Type Temperature Data Logger with USB and Display
Accuracy (overall error) ± 0.5°C typical
Input / Ranges -35 to +80°C / -31 to + 176°F
Dimensions 99 x 25 x 23mm (3.89 x 0.98 x 0.90”)
Power Consumption Battery Life 2 years (at 25°C and 1 minute logging rate, LCD on)
Power Supply BAT 3V6 1/2AA (included)
Maintenance Logging Rate: User selectable between 10 seconds and 12 hours
Accessories Calibration Certificate: Available Separately

EasyLog Data Logger Setup from Lascar Electronics

Learn about Lascar's standalone data logger. This product is equipped with a LCD screen and ranges of temperature, humidity, dew point and probe data loggers.
