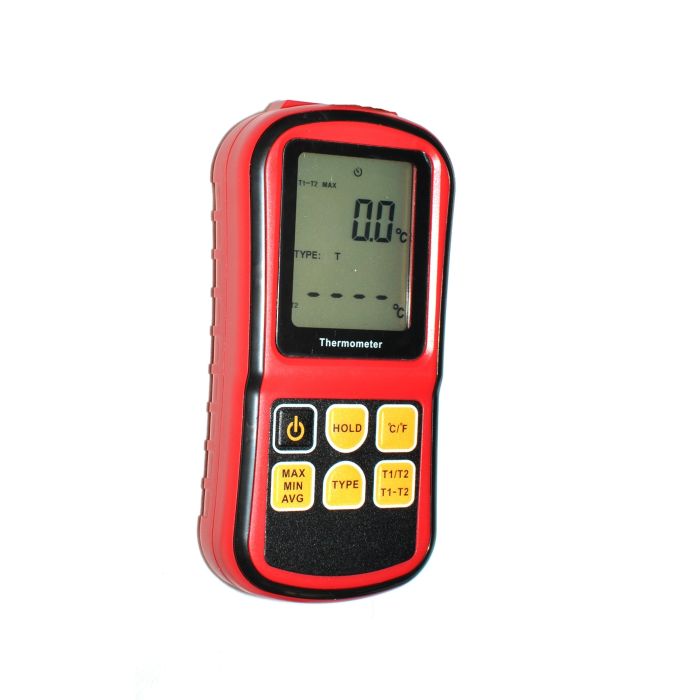

GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S)

Change Currency

SKU
XE-3999-001
£30.89 £25.74
Lead Time:
In-Stock
Weight:
300g
Tariff Code:
90330000
Country of Origin:
CN
RoHS Compliant:

Select your temperature sensors from the links below to add to this product. Calibration options above can be selected with any combination of probes.

Roound Handle Sensors
Shark Tail Sensors

Calibration options

PLEASE NOTE: Lead time will be 7-10 working days when choosing calibration

Calibration can be performed to approved recognised standards (National and International) or may simply constitute checking procedures on an “in-house” basis. Temperature calibration has many facets, it can be carried out thermally in the case of probes or electrically (simulated) in the case of instruments and it can be performed directly with certified equipment or indirectly with traceable standards.

Calibration Type


Probes Required for

'Simulated Calibration'

Probes Required for

'System Calibration'

3 points (single channel)

fixed @ 0, 100, 200°C

01

3 points (dual channel)

fixed @ 0, 100, 200°C

02

5 points (single channel)

fixed @ 0, 50, 100, 150, 200°C

01

5 points (dual channel)

fixed @ 0, 50, 100, 150, 200°C

02


--------------------------------------------------------------------------------------------------

  • K, J, T, E, N, R/S modes.
  • 2 temperature modes: ° C, ° F and
  • One push button to switch between ° F/° C mode as well to switch between MAX/MIN/AVG
  • 2 temperature channels: T1 / T2
  • Differential temperature measurement
  • Overload display alert if input exceeds the selected measurement range
  • Comes with rubber holster that protects the meter from impact Portable and compact design

Optional Hand-Held Temperature Sensors for use with this device are available from the dropdown menu - 50 probes available, select you probe type, calibration, length and diameter.

TypeK, J, T, E, N, R/S modes
Accuracy± 0.4° C ± 1%
Resolution0.1° C or 0.1°
Air Temp: Range0-40° C (32-104° F)
Input / Ranges
  • J TYPE: -210°C to 1200°C (-346°F to 2192°F)
  • K TYPE: -200°C to 1372°C (-328°F to 2501°F)
  • T TYPE: -250°C to 400°C (-418°F to 752°F)
  • E TYPE: -150°C to 1000°C (-238°F to 1832°F)
  • N TYPE: -200°C to 1300°C (-328 °F to 2372°F)
  • R&S TYPE: 0°C to 1767°C (32°F to 3212°F)
Power SupplySupplied with 3 x AAA Battery
Functions
  • One push button to switch between ° F/° C mode
  • MAX/MIN/AVG
  • 2 temperature channels: T1 / T2. Differential temperature measurement
