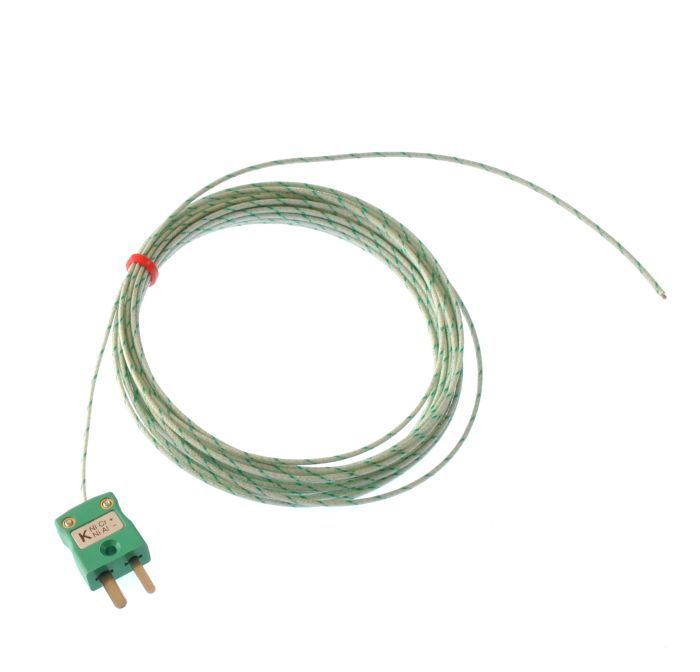

Glassfibre insulated Flat Pair IEC Exposed Junction Thermocouple - Type K with Miniature Plug Termination - 1/0.315mm x 300mm
Change Currency
- Buy 2 - 4 for £8.70 £7.25 each
- Buy 5+ for £8.29 £6.91 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order, you will be contacted regarding delivery information |
|---|
Specifications
| General Description | Good temperature resistance (not suitable in fluids) |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K |
| Cable Length | 300mm |
| Cable Type | Glassfibre |
| Core / Strands | 1/0.315mm |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperature | +350°C (short periods up to 400°C) |
| Min. Temperature | -60°C |
| Tolerance | Class 2 |
| Standards Met | IEC-584-3 |
| Connector Type | Plug |
| Connector Size | Miniature |
| Colour | Green |
