High temperature Standard Thermocouple Connector Plug STC-N-M-HTP Type N

Change Currency

SKU
XE-1568-001
£18.07 £15.06
  • Buy 2 for £14.22 £11.85 each
  • Buy 10 for £13.10 £10.92 each
  • Buy 50 for £11.99 £9.99 each
Lead Time:
See Description
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Lead time for these items can be around 4 - 5 weeks. You will be contacted by our sales team with more details and delivery update after ordering.
Please use the 'Product Enquiry' tab on the right if you require more information before ordering.

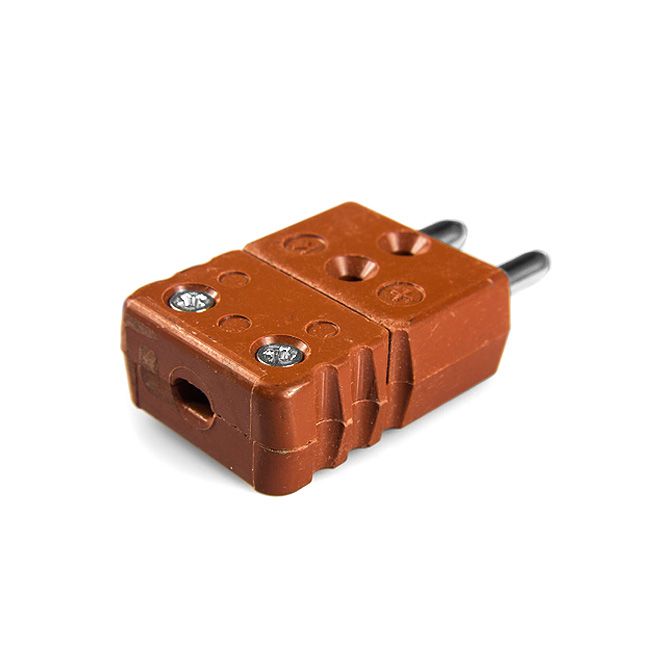

High temperature Standard Thermocouple Connector Plug STC-N-M-HTP Type N

High temperature for use up to 425°C. Heavy duty plastic body.

Specifications

General Description Contacts are polarised to prevent incorrect connection. Heavy duty plastic body
Thermocouple Type N
Connector Type High Temp Plug
Connector Size Standard
Colour Brown
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 425°C
Pins Solid Round Pins
+Positive Contact Nickel / Chromium / Silicon
-Negative Contact Nickel Silicon
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of Standard Thermocouple Connector High Temperature Plastic Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
