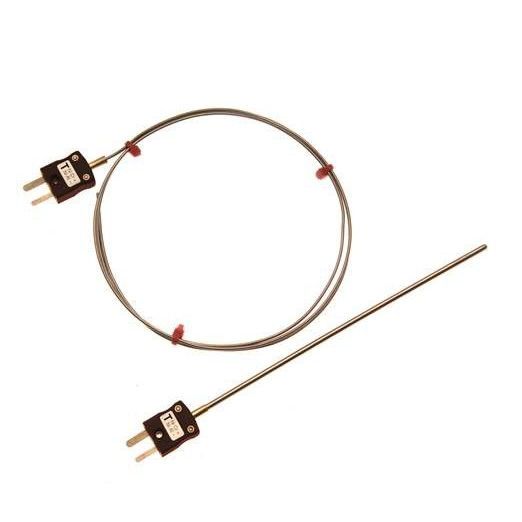

IEC Mineral Insulated Thermocouple with Miniature Plug - Type T - 1.5mm x 500mm
Change Currency
SKU
XE-3241-001
£42.24
£35.20
- Buy 2 - 14 for £35.41 £29.51 each
- Buy 15+ for £31.36 £26.13 each
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | T |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 1.5mm |
| Probe Length | 500mm |
| Sheath Material | Stainless steel 316 |
| Termination Type | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperature | 400°C |
| Min. Temperature | -100°C |
| Standards Met | IEC 584 |
| Connector Type | Plug |
| Connector Size | Miniature |
| Colour | Brown |
