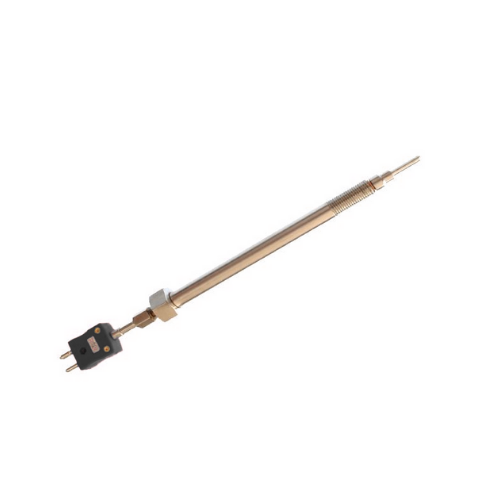

IEC Twist Melt Bolt Thermocouple - Type J

Change Currency

SKU
XE-5531-001
£186.84 £155.70
  • Buy 5+ for £186.36 £155.30 each
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Specifications

General Description Rotational blade style tip allowing correct positioning for reduced resistance in the melt flow
Sensor Type Widely used in plastics extruders and injection moulders
Thermocouple Type J
Probe Length 152mm stem length
Sheath Material Stainless steel bolt with 1/2”UNF-20 2A thread
Termination Type Standard plug termination (round pin)
Max. Temperature 400°C
Tolerance Tolerance & colour code in accordance with IEC-584 specification
Standards Met IEC
Thread 1/2”UNF-20 2A thread
Tip 20mm long blade tip immersion length
