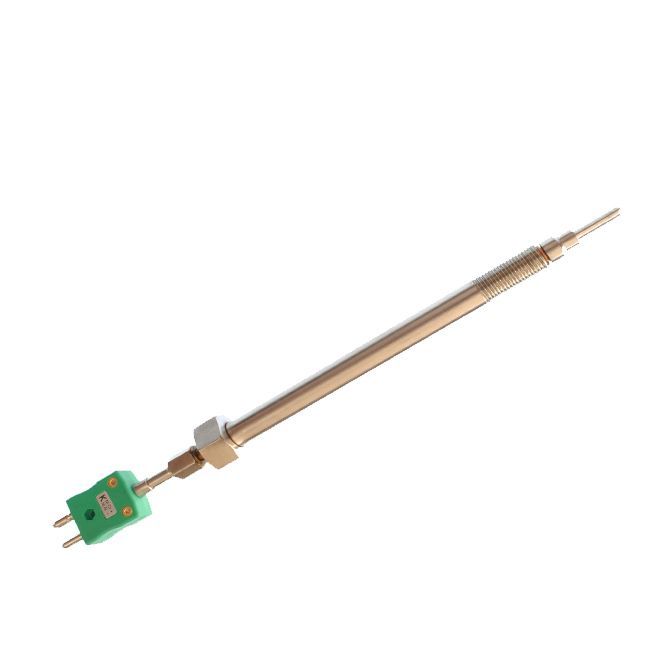

IEC Twist Melt Bolt Thermocouple - Type K
Change Currency
SKU
XE-5532-001
£188.87
£157.39
- Buy 5+ for £188.40 £157.00 each
Specifications
| General Description | Rotational blade style tip allowing correct positioning for reduced resistance in the melt flow |
|---|---|
| Sensor Type | Widely used in plastics extruders and injection moulders |
| Thermocouple Type | K |
| Probe Length | 152mm stem length |
| Sheath Material | Stainless steel bolt with 1/2”UNF-20 2A thread |
| Termination Type | Standard plug termination (round pin) |
| Max. Temperature | 400°C |
| Tolerance | Tolerance & colour code in accordance with IEC-584 specification |
| Standards Met | IEC |
| Thread | 1/2”UNF-20 2A thread |
| Tip | 20mm long blade tip immersion length |
