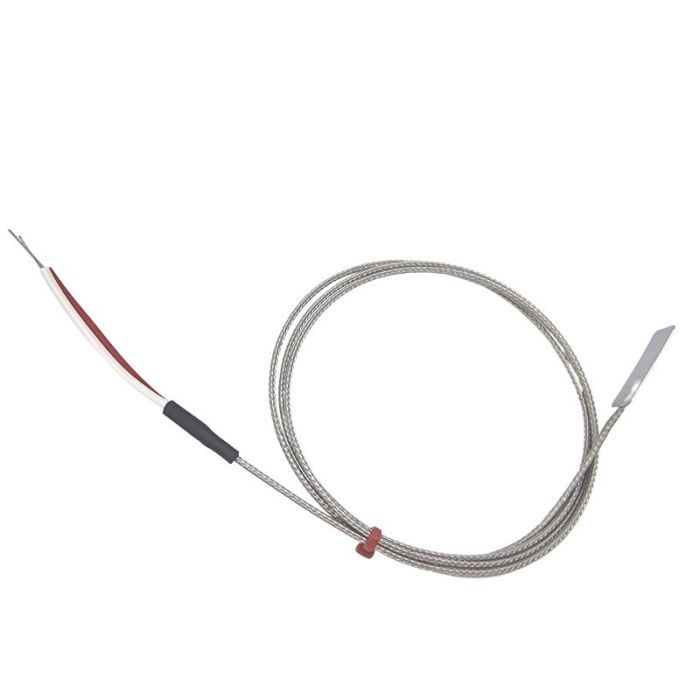

Leaf Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid - Type K JIS with Bare Tails Termination - 2m length
Change Currency
SKU
XE-0702-001
£18.71
£15.59
- Buy 2 - 4 for £16.85 £14.04 each
- Buy 5+ for £14.04 £11.70 each
Specifications
| General Description | Thermocouple mounted on a stainless steel shim |
|---|---|
| Thermocouple Type | K JIS |
| Thermocouple Junction | Junction grounded at tip for fast response |
| Cable Length | 2M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Dimensions | 25x13mm shim (0.2mm thick) |
