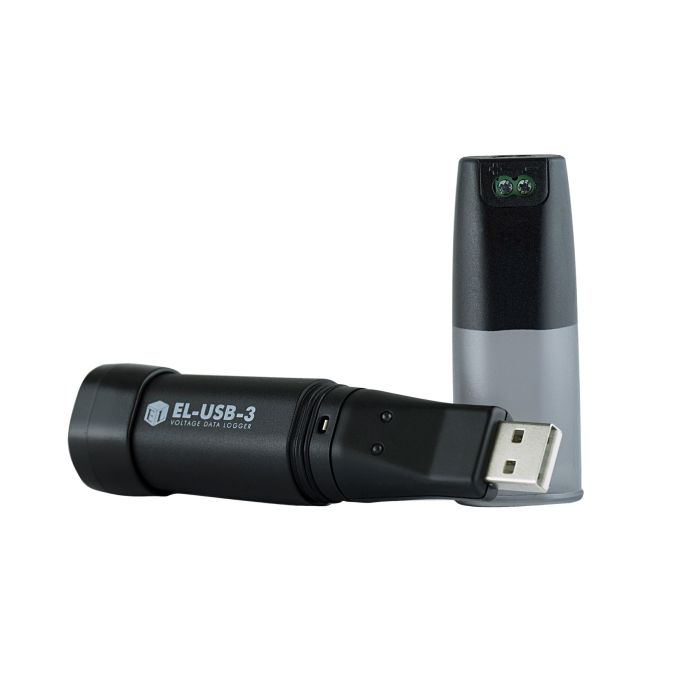

Lascar EL-USB-3 - Voltage Data Logger with USB
This standalone data logger measures more than 32,000 readings over a 0 to 30V d.c. range at a resolution of 50 mV d.c. The data logger is supplied with a 0 to 30V d.c. cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.
EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems
are currently not supported):
- Microsoft Windows 7
- Microsoft Windows 8.1
- Microsoft Windows 10 (32bit and 64bit)
The EL-USB-3 is suitable for a wide variety of applications. These include:
|General Description||This standalone data logger measures more than 32,000 readings over a 0 to 30V d.c. range at a resolution of 50 mV d.c.|
|Type||EL-USB-3 - Voltage Data Logger with USB|
|Input / Ranges||Measurement Range: 0 to 30V d.c.|
|Power Consumption||Battery life: 3 years|
|Power Supply||BAT 3V6 1/2AA (included)|
|Maintenance||Logging Rate: User selectable between 1 second and 12 hours|
EasyLog USB 3 & 4 Setup from Lascar Electronics
Learn about Lascar's standalone data logger. This product can record events, store 32,000 current loop readings over a 4-20mA d.c. measurement range.
