Lascar PanelPilot SGD 43-A - 4.3” Display with Analogue, Digital, PWM and Serial Interfaces

Change Currency

SKU
XE-4071-001
£215.94 £179.95
Lead Time:
5 - 7 Working Days
Weight:
1.00KG
Tariff Code:
90330000
Manufacturer:
Lascar
Country of Origin:
GB
RoHS Compliant:

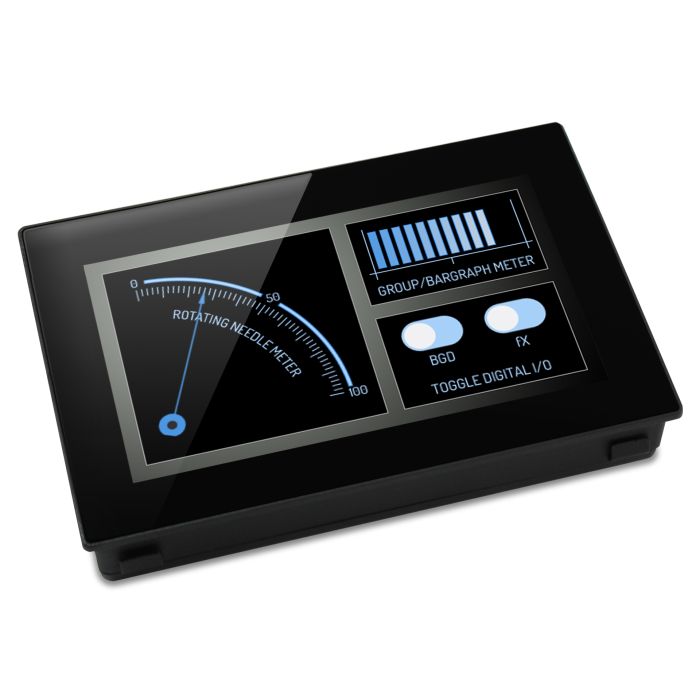

SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters.  This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs and serial RS232 and accessories available to measure RS485 and temperature.



General Description SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio.
Type Capacitive touch screen
Resolution 480 x 272px
Dimensions 119.3 (4.7) x 79.8 (3.1) x 20.0 (0.8) mm (in)
Input / Ranges Analogue Inputs: Four 16-bit to ±40V d.c.
Power Supply 5 to 30V d.c. (300mA typical at 5V d.c.)
Processor Freescale i.MX283 (454MHz, 32bit, ARM 9)
Resolution of data display 4.3” TFT with 262k colours

PanelPilotACE - Smart Graphic Displays. Without Writing Code.

PanelPilotACE - An off the shelf hardware and design software package for rapid development of industrial display and panel applications.…. without writing a line of code.
