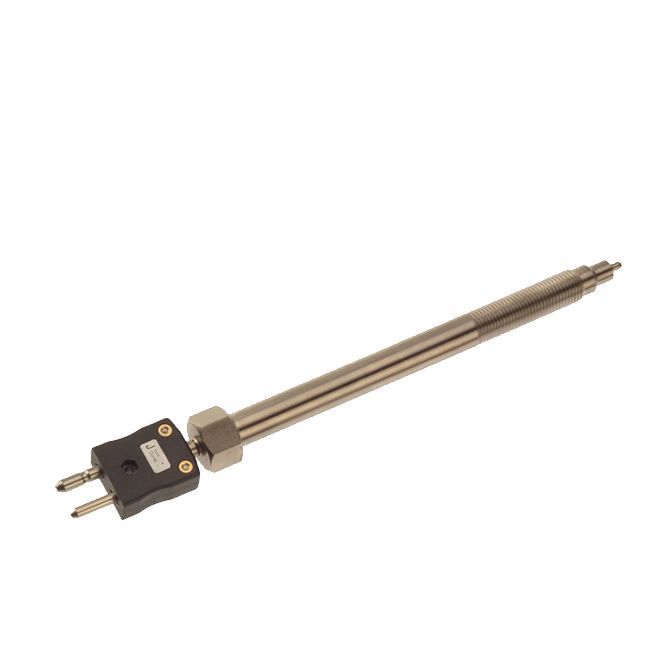

IEC Melt Bolt Thermocouple - Type J - 76mm Bolt Length
Change Currency
SKU
XE-3920-001
£131.34
£109.45
- Buy 5+ for £61.12 £50.93 each
Specifications
| General Description | Designed to withstand high pressure applications experienced with molten plastics & polymers |
|---|---|
| Sensor Type | Typically used in plastics extruders and injection moulders |
| Thermocouple Type | J |
| Thermocouple Junction | Insulated hot junction |
| Probe Diameter | 3mm |
| Probe Length | 5mm with 76mm bolt length |
| Sheath Material | Stainless steel |
| Termination Type | Standard plug termination (round pin) |
| Max. Temperature | 500°C |
| Tolerance | Tolerance & colour code in accordance with IEC-584 specification |
| Standards Met | IEC |
| Thread | 1/2”UNF-20 thread |
