Miniature Thermocouple Connector Plug AM-R/S-M Type R/S ANSI

Change Currency

SKU
XE-1310-001
£3.50 £2.92
  • Buy 2 - 9 for £2.93 £2.44 each and save 16%
  • Buy 10 - 99 for £2.50 £2.08 each and save 29%
  • Buy 100+ for £2.34 £1.95 each and save 33%
Lead Time:
In-Stock
Weight:
6g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

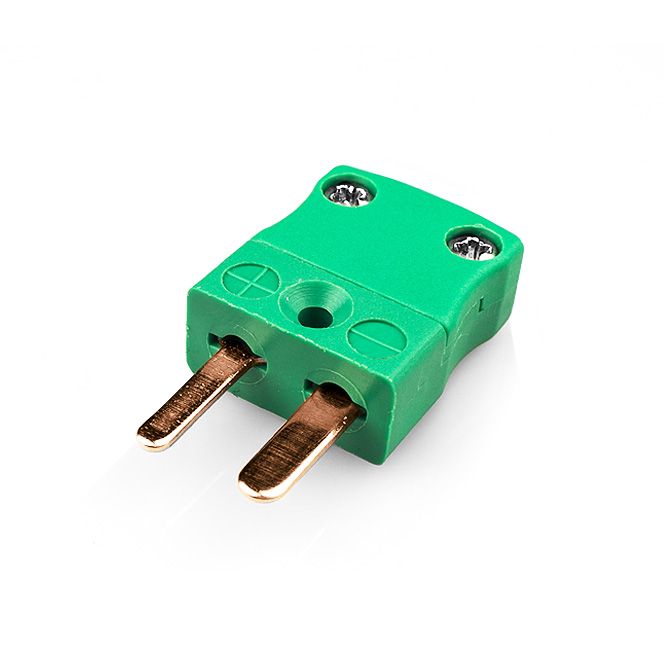

Miniature Thermocouple Connector Plug AM-R/S-M Type R/S ANSI

With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.

Specifications

General Description Ideal for general purpose use. Contacts are polarised to ensure correct connection.
Thermocouple Type R/S ANSI
Connector Type Plug
Connector Size Miniature
Colour Green
Max. Temperature 220°C
Pins Flat Pins
+Positive Contact Copper
-Negative Contact Copper Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Thermocouple Connector Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
