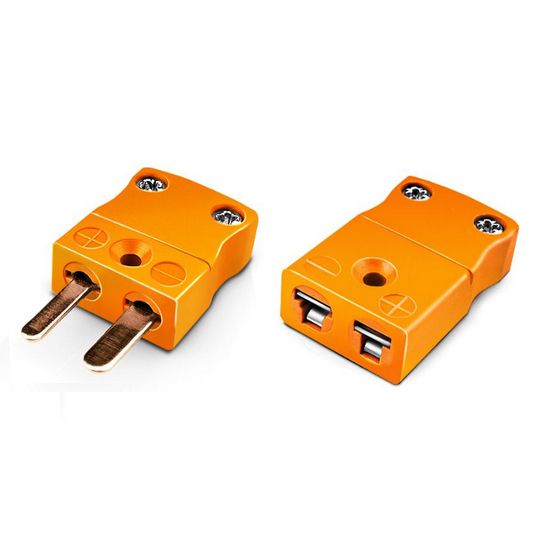

Miniature Thermocouple Connector Plug & Socket IM-R/S-M+F Type R/S IEC

Change Currency

SKU
XE-1001-001
£5.52 £4.60
  • Buy 2 for £4.08 £3.40 each
  • Buy 10 for £3.71 £3.09 each
  • Buy 50 for £3.16 £2.63 each
Lead Time:
In-Stock
Weight:
12g
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Origin:
GB
RoHS Compliant:

Miniature Thermocouple Connector Plug & Socket IM-R/S-M+F Type R/S IEC

With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.

Specifications

General DescriptionIdeal for general purpose use. Contacts are polarised to ensure correct connection
Thermocouple TypeR/S IEC
Connector SizeMiniature
Connector TypePlug & Socket
ColourOrange
Max. Temperature220°C
PinsFlat Pins
+Positive ContactCopper
-Negative ContactCopper Alloy
Standards MetBS EN 50212:1997. RoHS

3D Animation of Miniature IEC Thermocouple Connector Plug From Labfacility

Miniature Thermocouple Plug IEC*Miniature connector with flat plug pins. *Contacts are polarised to prevent incorrect connection. *Connectors will accept thermocouple cable up to 4mm diameter. *Cable clamps available for securing cable to plugs. *Max temperature 220 deg C.About LabfacilityFormed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors.Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation.Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com


3D Animation of Miniature IEC Thermocouple Connector Socket From Labfacility

Miniature Thermocouple In-Line Socket IEC*Miniature socket with thermocouple contacts. *Socket ideal for general purpose use. *Contacts are polarised to prevent incorrect connection. *Cable clamps available for securing cable to sockets. *Max temperature 220 deg C.About LabfacilityFormed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors.Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation.Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
