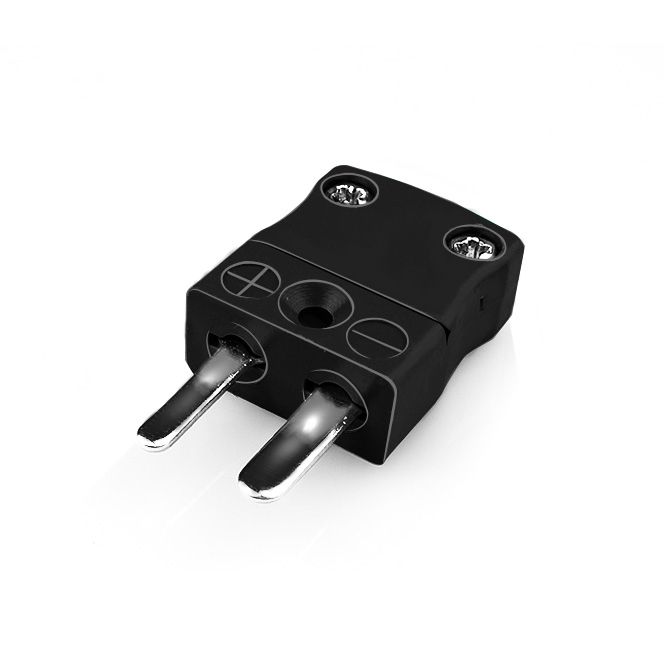

Miniature Thermocouple Connector Plug IM-J-M Type J IEC
Change Currency
- Buy 2 - 9 for £3.23 £2.69 each
- Buy 10 - 99 for £2.75 £2.29 each
- Buy 100+ for £2.58 £2.15 each
Miniature Thermocouple Connector Plug IM-J-M Type J IEC
With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.
Specifications
| General Description | Ideal for general purpose use. Contacts are polarised to ensure correct connection. |
|---|---|
| Thermocouple Type | J IEC |
| Connector Type | Plug |
| Connector Size | Miniature |
| Colour | Black |
| Max. Temperature | 220°C |
| Pins | Flat Pins |
| +Positive Contact | Iron |
| -Negative Contact | Copper Nickel |
| Standards Met | BS EN 50212:1997. RoHS |
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
3D CAD models provide accurate representations of our thermocouple connectors, allowing you to import them directly into your CAD software to check fit, orientation and clearances before finalising a design.
Whether you're designing a panel, enclosure or complete system, our STEP files help reduce development time, avoid costly design changes, and ensure our connectors integrate smoothly into your application.
