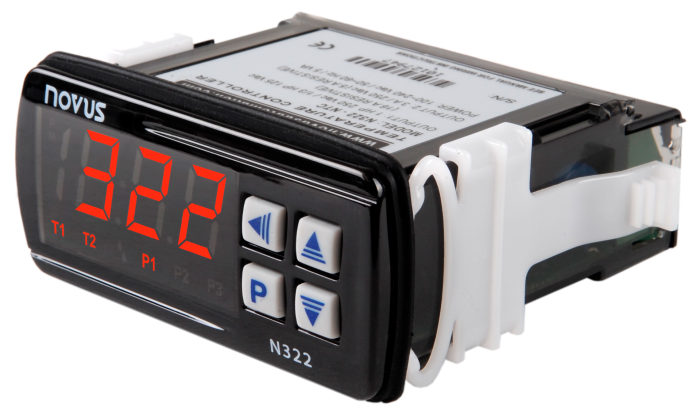

Novus 2-Output Temperature Controller N322, Pt100 or Thermocouple
Change Currency
2-Output Temperature Controller
Digital temperature controller for heating and refrigeration purposes with 2 independent setpoints. It has Pt100, thermistor NTC or J, K and T thermocouple inputs.
Specifications
- Sensor input: Pt100 (-50 to 300 °C), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C )
- IP65 enclosure frontal protection
- Output: Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) and relay SPST-NA: 3 A / 250 Vca
- Resolution: 0,1 °C from -19,9 to 199,9 °C
- Accuracy: ± 0,5 °C / °F ±1 digit (Pt100/Thermistor) and ±2 °C for Thermocouple
- Adjustable hysteresis
- Sampling: 1,5 per second
- Working temperature: 0 to 50 °C
- Power supply: 100-240 Vac/dc (internal) or 12-30 Vdc/ac
- Digital comunication via RS485 with Modbus RTU protocol(optional)
- Dimensions: 75 x 33 x 75 mm
N32X - Remove protection | English
✔ Learn more at: https://www.novusautomation.com/en Follow us on our social networks: ✔ Facebook: https://www.facebook.com/novusbr ✔ Linkedin: https://www.linkedin.com/company/novusbr
N32X - Configure password and Insert Protection | English
✔ Learn more at: https://www.novusautomation.com/en Follow us on our social networks: ✔ Facebook: https://www.facebook.com/novusbr ✔ Linkedin: https://www.linkedin.com/company/novusbr
