PRT (LEMO) 4 wire Connector

Change Currency

SKU
CA-150-D
£19.85 £16.54
Lead Time:
In-Stock
Weight:
330g
Tariff Code:
85369010
Manufacturer:
LEMO
RoHS Compliant:
Product Compliance:
Postage & Delivery:

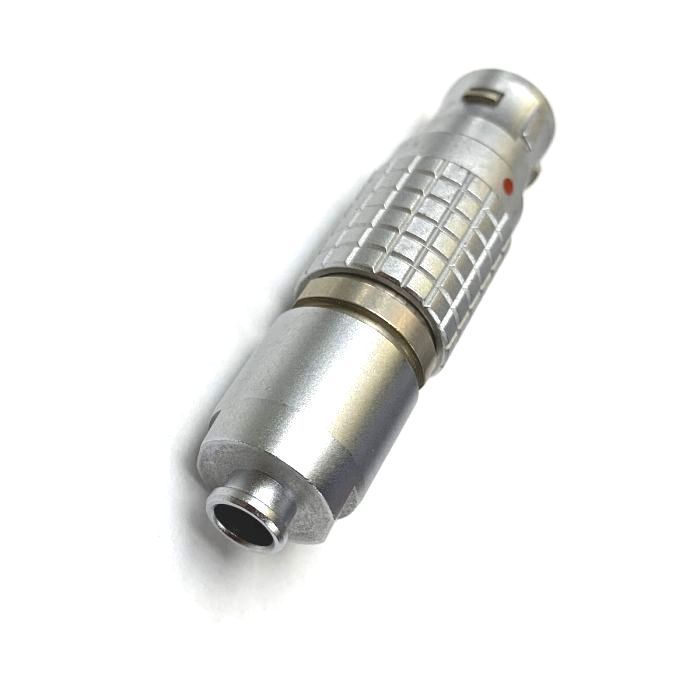

PRT (LEMO) 4 wire Connector - FGG.2B.304.CLAM42Z

Wires:

  • Low 4
  • High 0
  • Coax 0
  • Triax 0
  • Quad 0
  • Fiber 0
  • Fluidic 0
  • Series 2B
  • Termination type: Male solder
  • IP rating: 50
  • Cable: 3.10 - 4.00 mm

Technical Details:

  • Shell style / model: FG*: Straight plug, cable collet and nut for fitting a bend relief
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Cable Fixing: M42: 3.1 - 4 mm
  • Variant: Z : Nut for fitting a bend relief
  • Weight: 32.55g

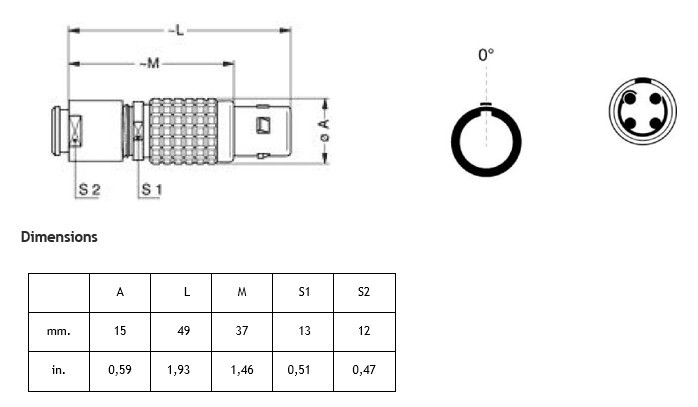

LEMO diagram

Performance:

  • Configuration: 2B.304 : 4 Low Voltage
  • Insulator: L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
  • Rated Current: 15 Amps

Specifications:

  • Contact Type: Solder
  • Matings: 5000
  • Contact Dia.: 1.3 mm (0.051in)
  • Bucket Dia.: 1 mm (0.039in)
  • Solid Conductor: 0.5 mm^2 (AWG 20)
  • Stranded Conductor: 0.5 mm^2 (AWG 20)
  • R (max): 3.6 mOhm
  • Vtest (contact-shell): 1850 V (AC), 2600 V (DC)
  • Vtest (contact-contact): 1850 V (AC), 2600 V (DC)
  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • IP Rating: 50
