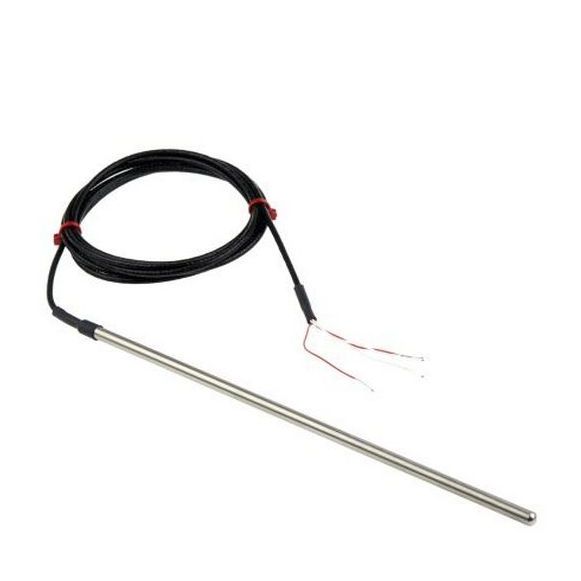

Pt100 Precision Probe with 2 metre lead - Type RTD / PRT - 6.0mm Diameter - 250mm Length with D Connector

Change Currency

SKU
XE-3692-001
£143.09 £119.24
  • Buy 2 - 14 for £120.47 £100.39 each
  • Buy 15+ for £109.84 £91.53 each

Maximum 30 characters

Maximum 40 characters

Lead Time:
In-Stock
Weight:
300g
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Precision Pt100 sensor offering high accuracy over the range -50 to 250°C or 0°C to 450°C. Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths, or for those looking for a high accuracy probe better than the usually offered class A or B types. These Precision Pt100 sensors have accuracies better than 1/5 DIN (ie. ±0.06°C @ 0°C).

  • High accuracy, better than 1/5 DIN
  • 250°C & 450°C versions

PRT sensor assemblies are constructed using sensing resistors (detectors) of the specified tolerance ( i.e. Class A, 1/5DIN, 1/10DIN etc.). This tolerance refers to the detector only, not the complete, fabricated probe. Detector tolerance is rarely achieved via the probe terminations due to lead resistance effects, welding of extension leads to the detector and general manipulation during construction. The true measurement uncertainties are available via optional UKAS traceable Probe Calibration.

Specifications

General Description Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths
Sensor Type Pt100 (100 Ohms @ 0°C)
Cable Connection 4-Wire current and voltage
Calibration ISO17025 (UKAS) calibration not included - please contact our sales team if required
Probe Diameter 6.0mm
Probe Length 250mm
Sheath Material Stainless steel 316 sheath
Cable Length 2M
Cable Type PTFE insulated screened lead
Core / Strands 7/0.2mm
Cable Termination D Connector
Max. Temperature 250°C
Min. Temperature -50°C
Accuracy ±0.06°C @ 0°C
