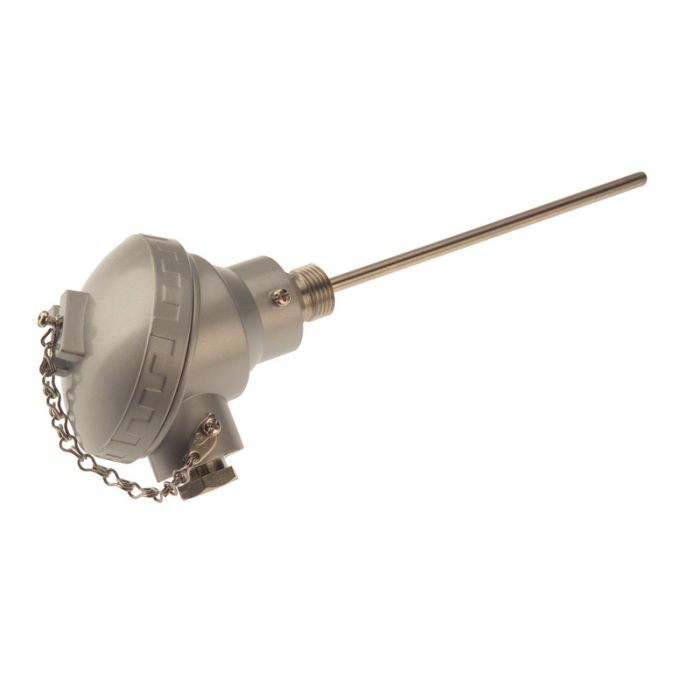

Pt100 4 wire class B Resistance Thermometer with 1/2"BSP Process Connection, KNE Head with 250mm Probe Length

Change Currency

SKU
XE-3650-001
£73.60 £61.33
  • Buy 2 - 14 for £69.92 £58.27 each
  • Buy 15+ for £66.24 £55.20 each
Series:
Pt100 KNE
Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90330000
Manufacturer:
Labfacility
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.

Specifications

Sensor Type Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire
Probe Diameter 6mm
Probe Length 250mm
Sheath Material 316 stainless steel
Head Type KNE
Termination Type 4 wire connection block, M20 x 1.5mm cable entry (gland included)
Process Connection options 1/2"BSP parallel
Max. Temperature +450°C (connection head @ 170°C)
Min. Temperature -50°C
IP Rating IP67
Accuracy Class B
Number of Wires 4
