Pt100 Outdoor / Cold Store Temperature Sensors - Type PRT - Single Element with 4-20mA Output

Change Currency

SKU
XE-3675-001
£273.11 £227.59
  • Buy 2 - 14 for £212.59 £177.16 each
  • Buy 15+ for £191.33 £159.44 each
Series:
Outdoor / Cold Store Pt100
Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Includes integral transmitter which converts the Pt100 sensor output to a standard industrial 4 to 20mA output signal over pre-configured range of -50 to +150°C. It is also configurable by the user allowing range and burnout direction to be changed. It also allows the user to trim output current at either 4 or 20mA.

3 wire single element with transmitter, 4-20mA 2 wire current loop output, default range -50 to +150°C (other ranges can be scaled/configured by user, 25°C minimum span - further transmitter specifications below).

Specifications

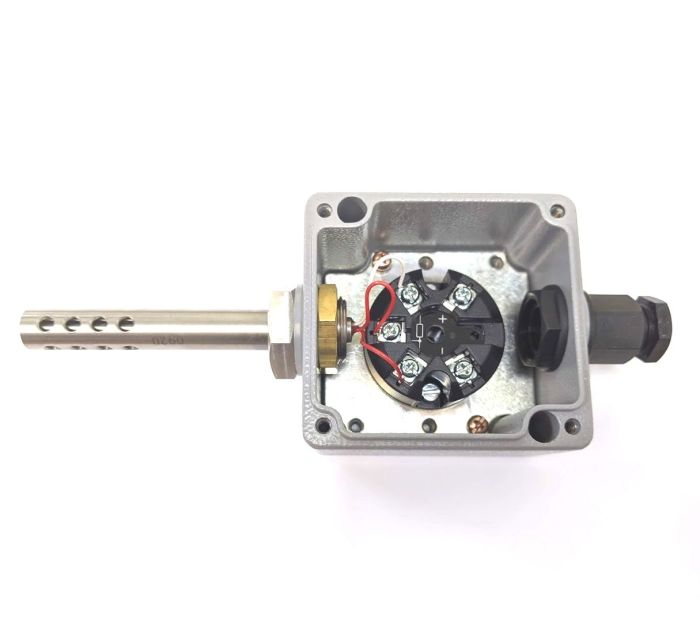

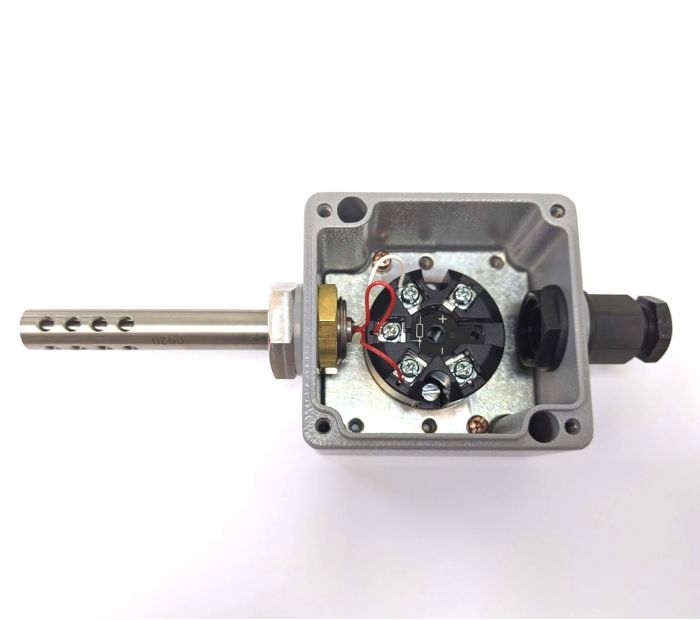

General Description Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing
Sensor Type Single element with 4-20mA output
Housing Painted Die-Cast Aluminium Housing L80 x W74 x H54mm
Element Pt100, class B to IEC 751
Sheath Material Perforated 316 stainless steel probe, 12.7mm x 75mm
Gland M20 cable entry gland
Max. Temperature 150°C
Min. Temperature -50°C
IP Rating IP67
Transmitter Transmitter device has an ambient operating range of -40 to +85°C
Number of Wires 3
