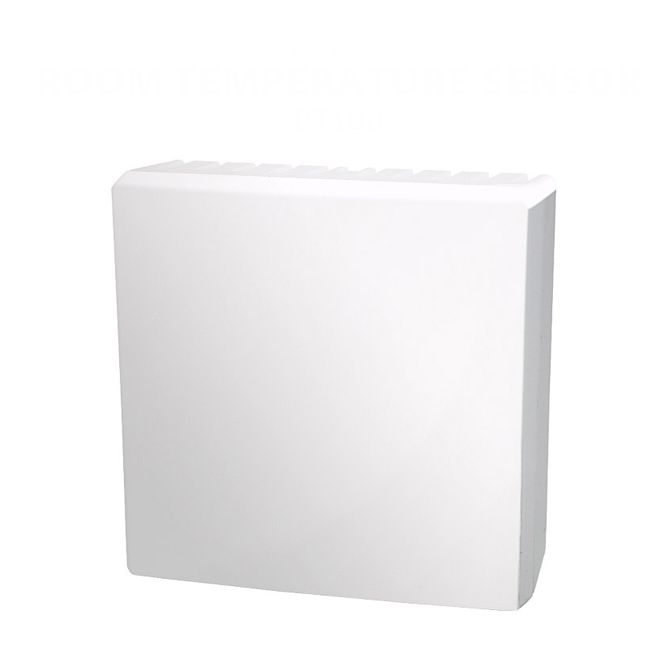

Room Temperature Sensor

Room Temperature Sensor

Details

An indoor sensor in modern housing design measures the temperature in the range of -30 up to +60°C in gasiform medium. The temperature probe can be mounted directly on-wall or onto a junction box by 2 fixing screws. The extra wide ventilation slots ensures a good air circulation for a high accuracy of measurement.

  • Measurement range temp: -30 to +60°C
  • Sensor: Pt100
  • Circuit type: 2-wire connection
  • Measurement current: approx. 1 mA
  • Electrical connection: screw terminals max. 1,5 mm²
  • Leakage resistance: > 100 MOhm, at +20°C (500 V DC)
  • Housing: ABS polymer, colour signal white like RAL 9003
  • Dimensions: Housing: L 82 x W 82 x H 25 mm
  • Weight: 55g
  • Protection type: IP30
  • Protection class: III
  • Storage temperature: -20...+50°C
  • Installation: on-wall or on flush-mounted box
  • Standards: CE-conformity, GOST, RoHS
GBP EUR USD JPY
Excl. VAT: £16.36 Incl. VAT: £19.63
Labfacility Part No:
XE-6330-001
Lead Time:
5 - 7 Working Days
Tariff Code:
90330000
Country of Origin:
United Kingdom
RoHS Compliant:
