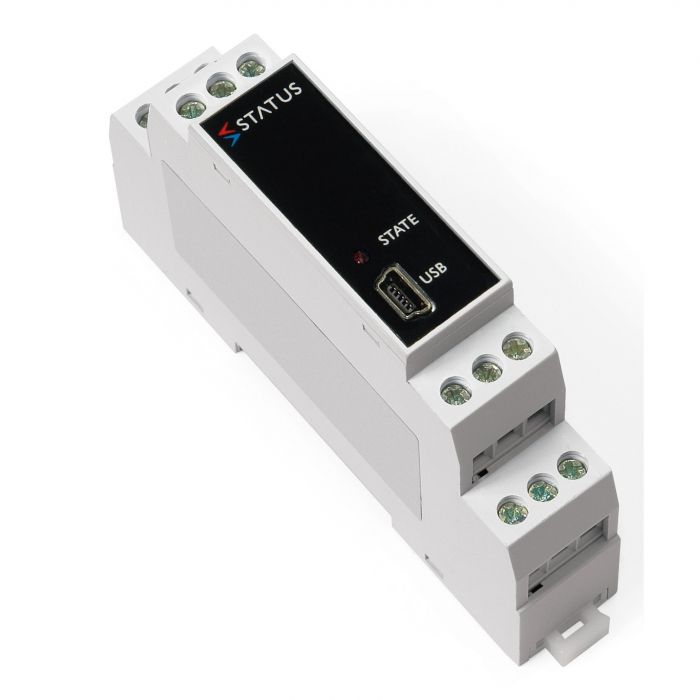

Status SEM1615 - Universal Dual Input Temperature Transmitter

• Universal Dual Input
• Maths Functions Between Inputs
• Sensor Characteristics Download Via USB Port
• Flash Tested To 4kV DC
• (4 to 20) mA Loop Output

The SEM1615 is a universal transmitter that accepts RTD, Thermocouple, Potentiometer or millivolt input
signals and converts them to the industry standard (4 to 20) mA transmission signal. It is programmed using a standard USB lead and our free configuration software“USBSpeedlink” downloaded from our web site.

The output range and other operating parameters are easily programmed using our free software and a standard USB lead. Isolation is a standard feature to overcome any potential ground loop effects and a sensor referencing facility enables the transmitter to be calibrated to a particular sensor.
