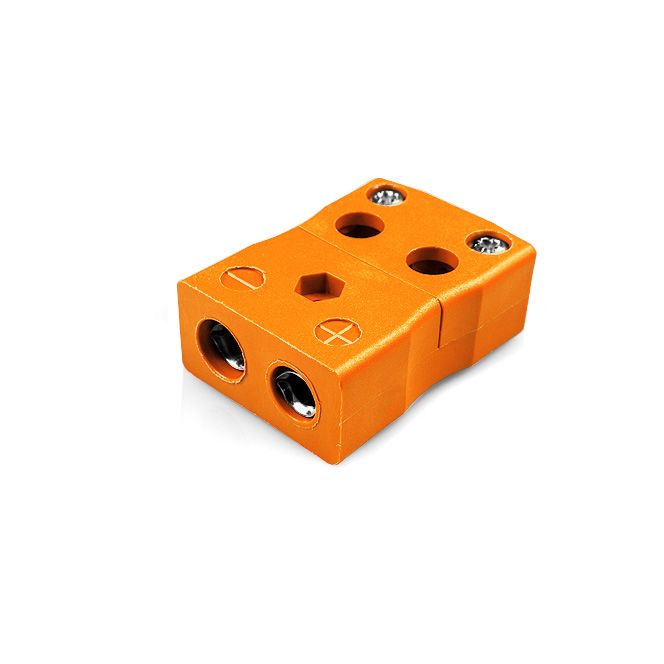

Standard Quick Wire Thermocouple Connector Socket AS-N-FQ Type N ANSI
Change Currency
SKU
XE-1582-001
£7.04
£5.87
- Buy 2 - 9 for £5.22 £4.35 each
- Buy 10 - 99 for £4.44 £3.70 each
- Buy 100+ for £4.18 £3.48 each
Standard Quick Wire Thermocouple Connector Socket AS-N-FQ Type N ANSI
Easy 'jab-in' connection for rapid termination, just push wire in and tighten screw. Contacts are polarised to prevent incorrect connection
Specifications
| General Description | Easy 'jab-in' connection for rapid termination, contacts are polarised to prevent incorrect connection |
|---|---|
| Thermocouple Type | N ANSI |
| Connector Type | Quick Wire Socket |
| Connector Size | Standard |
| Colour | Orange |
| Max. Temperature | 220°C |
| +Positive Contact | Nickel / Chromium / Silicon |
| -Negative Contact | Nickel Silicon |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation Standard Quick Wire Thermocouple Connector Socket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
