Standard Rectangular Fascia Thermocouple Connector Socket AS-N-FF Type N ANSI
Change Currency
SKU
XE-1577-001
£6.42
£5.35
- Buy 2 - 9 for £5.41 £4.51 each
- Buy 10 - 99 for £4.60 £3.83 each
- Buy 100+ for £4.33 £3.61 each

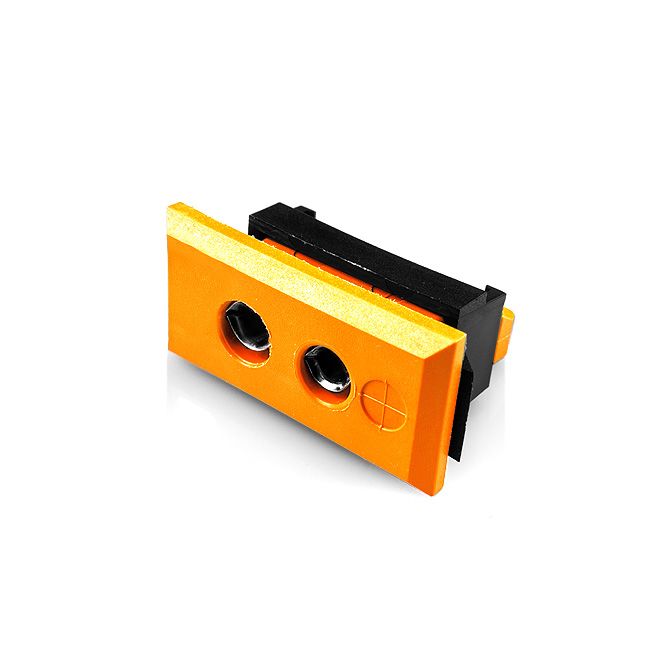

Standard Rectangular Thermocouple Connector Fascia Socket AS-N-FF Type N ANSI
Nylon clip for quick, simple fixing to panel. All fascia mounting sockets are polarised by means of unequally sized pins
Specifications
| General Description | Accepts standard round pin plug connector. Nylon clip for quick, simple fixing to panel |
|---|---|
| Thermocouple Type | N ANSI |
| Connector Type | Fascia Mounting Socket |
| Connector Size | Standard |
| Colour | Orange |
| Max. Temperature | 120°C |
| +Positive Contact | Nickel / Chromium / Silicon |
| -Negative Contact | Nickel Silicon |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation Standard Rectangular Thermocouple Connector Fascia Socket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
