Standard Thermocouple Connector Plug AS-R/S-M Type R/S ANSI

Change Currency

SKU
XE-1610-001
£4.66 £3.88
  • Buy 2 - 9 for  £3.77 £3.14 each
  • Buy 10 - 99 for  £3.20 £2.67 each
  • Buy 100+ for  £3.02 £2.52 each
Lead Time:
In-Stock
Weight:
22g
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

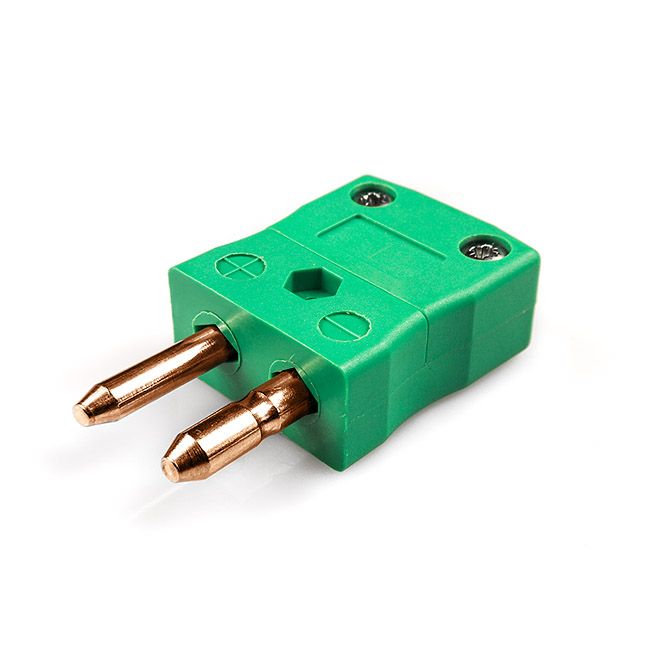

Standard Thermocouple Connector Plug AS-R/S-M Type R/S ANSI

Contacts are made from true Thermocouple alloys. Suitable for industrial applications

Specifications

General DescriptionContacts are polarised to prevent incorrect connection
Thermocouple TypeR/S ANSI
Connector TypePlug
Connector SizeStandard
ColourGreen
Max. Temperature220°C
PinsSolid Round Pins
+Positive ContactCopper
-Negative ContactCopper Alloy
Standards MetBS EN 50212:1997. RoHS

3D Animation

3D Animation of Standard Thermocouple Connector Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
