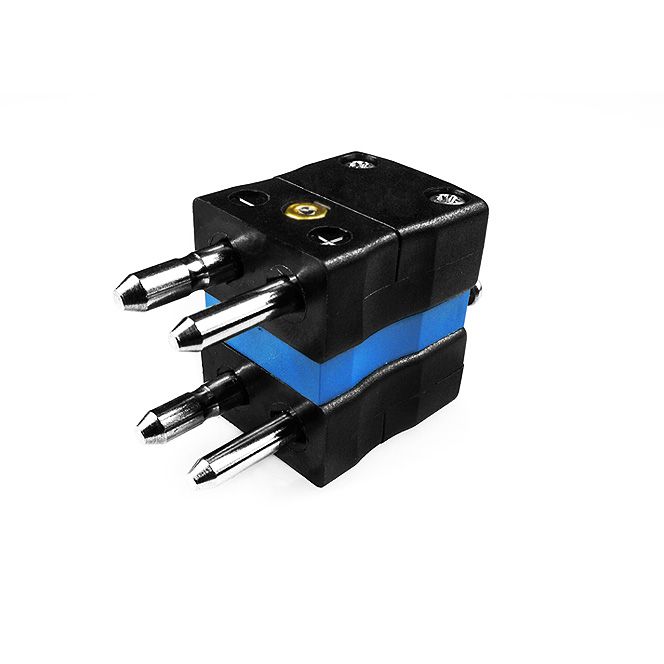

Standard Thermocouple Duplex Thermocouple Connector Plug JS-K-MD Type K JIS

Change Currency

SKU
XE-9286-001
£16.32 £13.60
  • Buy 2 - 9 for £10.49 £8.74 each and save 36%
  • Buy 10 - 99 for £8.92 £7.43 each and save 45%
  • Buy 100+ for £8.39 £6.99 each and save 49%
Lead Time:
In-Stock
Weight:
49g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Standard Thermocouple Duplex Thermocouple Connector Plug JS-K-MD Type K JIS

Rugged glass filled polyester bodies. Plugs fitted with solid thermocouple pins. Contacts are polarised to prevent incorrect connection

Specifications

General Description Rugged glass filled polyester bodies, suitable for industrial applications.
Thermocouple Type K JIS
Connector Type Duplex Plug
Connector Size Standard
Colour Blue
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 220°C
Pins Solid Round Pins
+Positive Contact Nickel Chromium
-Negative Contact Nickel Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation Standard Thermocouple Connector Duplex Plug from Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
