Surface Mount Type K IEC Thermocouple Sensor with Bare Tails Termination - 2M Lead Length
Change Currency
SKU
XE-7751-001
£84.92
£70.77
- Buy 2 - 4 for £63.70 £53.08 each
- Buy 5 - 14 for £55.84 £46.53 each
- Buy 15+ for £47.47 £39.56 each

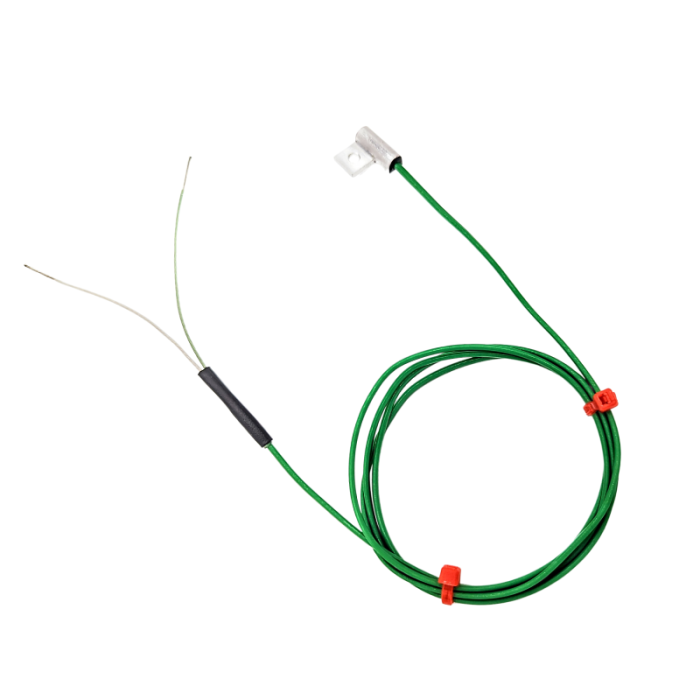

A bolt-on type thermocouple with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting. It is a Class 1 accuracy type K thermocouple as standard complete with a PFA lead with tails or mini plug. The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.
Specifications
| General Description | Stripped 75mm tails as standard |
|---|---|
| Sensor Type | Thermocouple |
| Thermocouple Type | K |
| Fitting | 3mm Mounting Hole |
| Cable Type | PFA |
| Termination Type | Bare Tails |
| Max. Temperature | 230°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Standards Met | IEC |
| Length | 2M |
| Important Information | Optional Type J or T version available on request |
