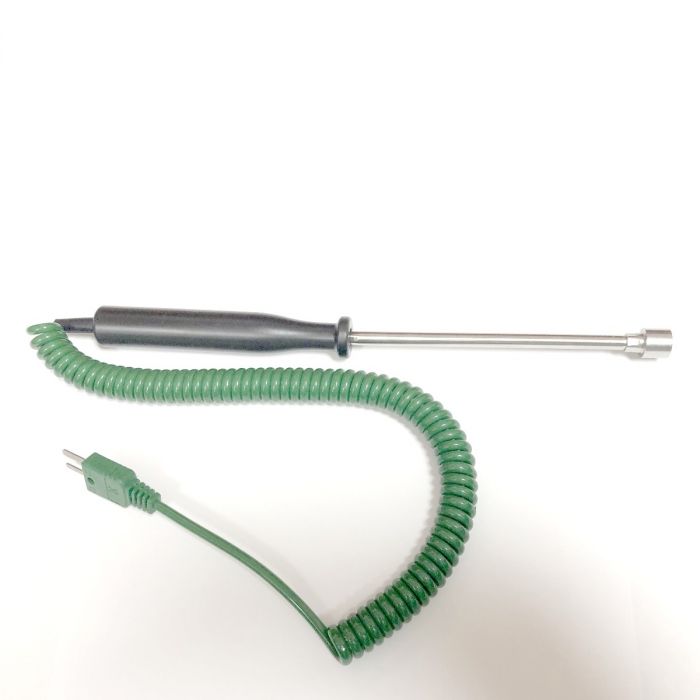

Dual Surface Immersion (Waterproof) Probe - Type K

Change Currency

SKU
XE-3841-001
£59.86 £49.88
Lead Time:
7 - 10 working days
Weight:
200g
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

An ideal probe for water temperature testing to aid legionella prevention.

Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.

  • K Type Thermocouple Class I (±1.5°C ±0.25%)
  • Measurement Range: -10 to + 200°C
  • Probe measures Ø12 x 120mm long stem with Ø12 x 10mm tip.
  • Dual Purpose for liquid and surface temperature measurement
  • Ribbon band sensor sealed with Silicon Rubber compound to ensure the probe is fully waterproof.



General Description Dual Purpose for liquid and surface temperature measurement
Thermocouple Type K Type Thermocouple Class I (±1.5°C ±0.25%)
Calibration IEC
Probe Diameter 12mm
Probe Length 120mm long stem with Ø12 x 10mm tip
Sheath Material Stainless steel sheath
Cable Length 1m of straight polyurethane with moulded connector
Cable Type polyurethane
Cable Termination moulded connector
Max. Temperature +200°C
Min. Temperature -10°C
Standards Met Colour code (cores & jacket) to IEC-584-3
IP Rating IP67
Connector Type Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification
Connection Type Plug
Connector Size Miniature (moulded-on)
Features #1 Ribbon band sensor sealed with Silicon Rubber compound to ensure the probe is fully waterproof.
