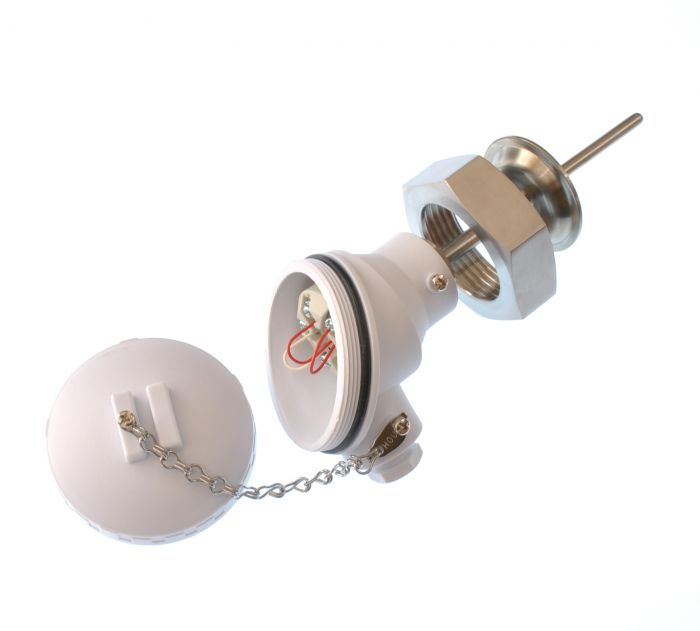

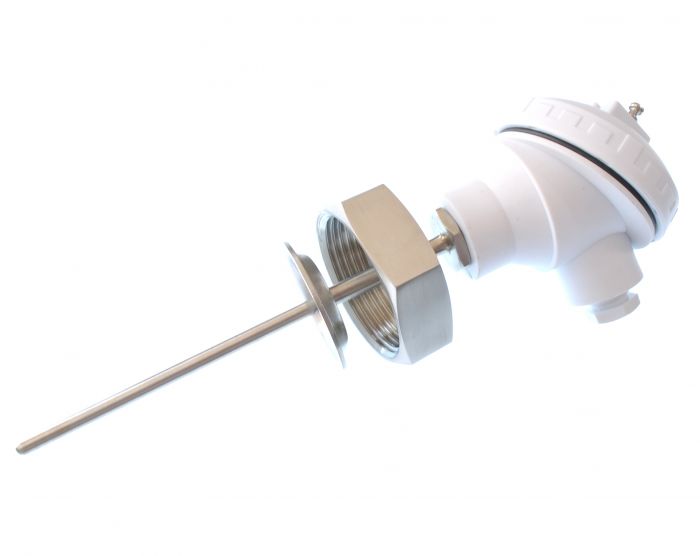

Hygienic Pt100 Resistance Thermometer, 1.5'' RJT Style Fitting

Change Currency

SKU

XE-5525

£157.81 £131.51

Transmitter Fitted?

Specifications

Selected Part Number / Show All

Qty

Lead Time:

Select Options

Tariff Code:

90330000

Country of Manufacture:

RoHS Compliant:

RoHS

Product Compliance:

Download Here

For Postage and Delivery Terms

please click here

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Custom Build

Details

RJT Style Schematic Drawing

RJT unions (Ring Joint Type) are often referred to as a standard union. The compromise of an o-ring style gasket which leaves a small crevice where the liner and male part of the union overlap.

Ideal for hygienic processes including dairy, brewery and pharmaceutical applications.

General Description	Ideal for hygienic processes including dairy, brewery and pharmaceutical applications.
Sensor Type	Pt100, 3 or 4 wire single element class A
Head Type	KNEF
Connection Type	Pt100, 3 or 4 wire single element class A
Transmitter	Optional SEM-203p transmitter, ranged -50°C to +150°C
Support Dia (D2)	8.0mm
Support Length (L2)	50mm
