Type K PFA Insulated Twin Twisted Pair Thermocouple Cable / Wire (ANSI)

PFA Teflon® twin twisted pair for extending or making simple thermocouples. PFA Teflon®has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.

Specifications

Cable Length 10m, 25m, 50m, 100m

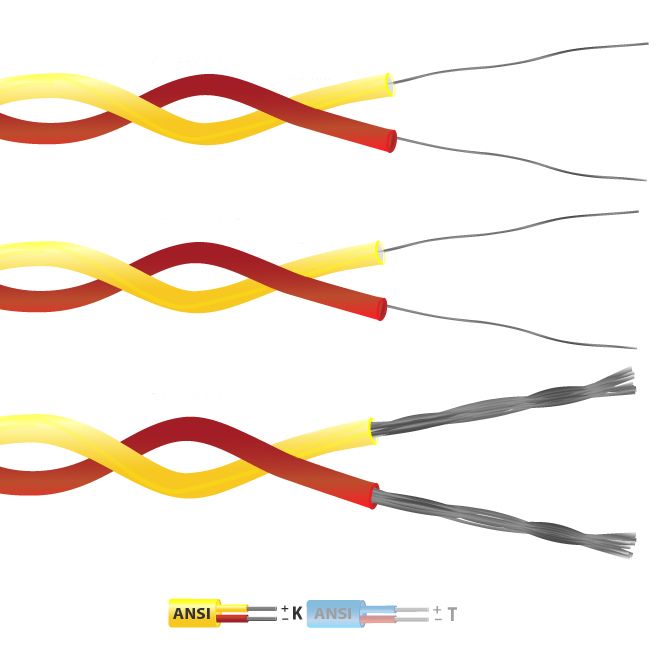

Cable Type Single pair of PFA insulated conductors twisted together
Core / Strands 1/0.2mm, 1/0.3mm or 7/0.2mm
Conductor Cross Section 1/0.2 (mm2) 0.032
Conductor Cross Section 1/0.315 (mm2) 0.078
Conductor Cross Section 7/0.2 (mm2) 0.219
+ Colour Yellow
- Colour Red
Drain Wire No
Insulation Material PFA Teflon®
Loop Resistance 1/0.2 (Ohms per combined metre) 31.8
Loop Resistance 1/0.315 (Ohms per combined metre) 12.8
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +260°C
Min. Temperature -75°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to ANSI MC96.1
Thermocouple Type K
Tolerance Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
