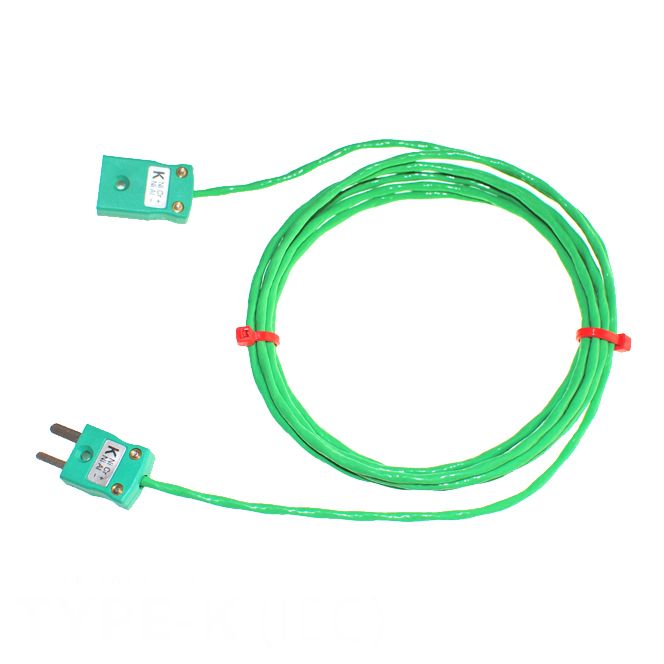

Type K PFA Thermocouple Extension Leads with Miniature Plug & Socket (IEC)

Change Currency

SKU
XE-7044
£28.34 £23.62
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Cable Description

  • PFA insulated & screened
  • Twisted cores & screened construction for reduced electrical noise
  • Conductors PFA insulated and twisted together, stainless steel braided screen, overall PFA sheath
  • Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids
  • Thermocouple extension types for K
  • Stranded 7/0.2mm conductors
  • Available in 2 & 5 metre lengths
  • Insulation rating -75°C to 260°C
  • Colour code (cores & jacket) to IEC-584

Connector Description

  • Ideal for general purpose use
  • All contacts are polarised to ensure correct connection
  • Colour coded in accordance with IEC specification
  • Maximum continuous operating temperature 220 deg°C



General Description Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments.
Cable Length 2M or 5M
Cable Type Conductors PFA insulated and twisted together, stainless steel braided screen, overall PFA sheath
Connector Type Thermocouple Plug & Socket
Connector Size Miniature
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green
+ Colour Green
- Colour White
Drain Wire No
Insulation Material PFA Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature 260°C
Min. Temperature -75°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen Yes
Screen Type Stainless Steel Braided
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Termination Type Miniature Thermocouple Plug
Tolerance Class 1
Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
