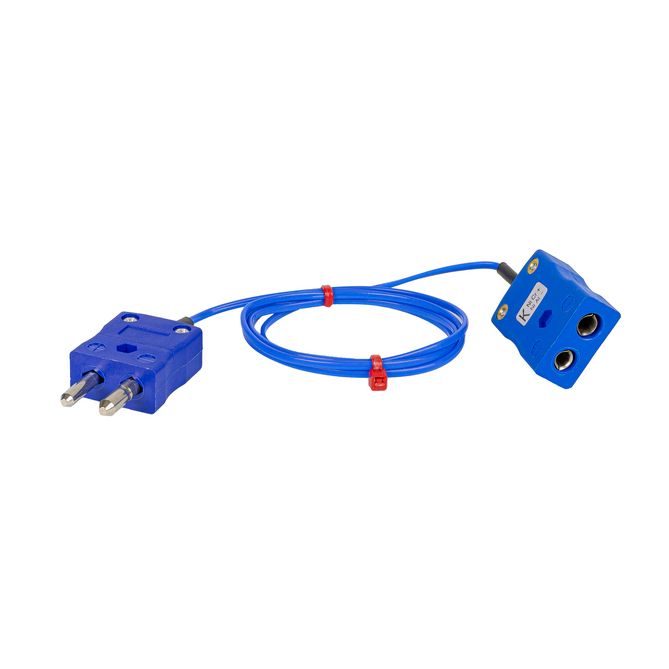

Type K PVC Extension Leads with Standard Plug & Socket (JIS)

Change Currency

SKU
XE-0549
£32.58 £27.15
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Specifications

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 1M, 2M, 3M, 5M, 10M
Cable Type Flat Pair Construction
Connector Type Thermocouple Plug & Socket
Connector Size Standard
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Blue
+ Colour Red
- Colour White
Drain Wire No
Insulation Material PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met JIS (Japanese Industrial Standards)
Thermocouple Type K
Termination Type Standard Thermocouple Plug and Socket
