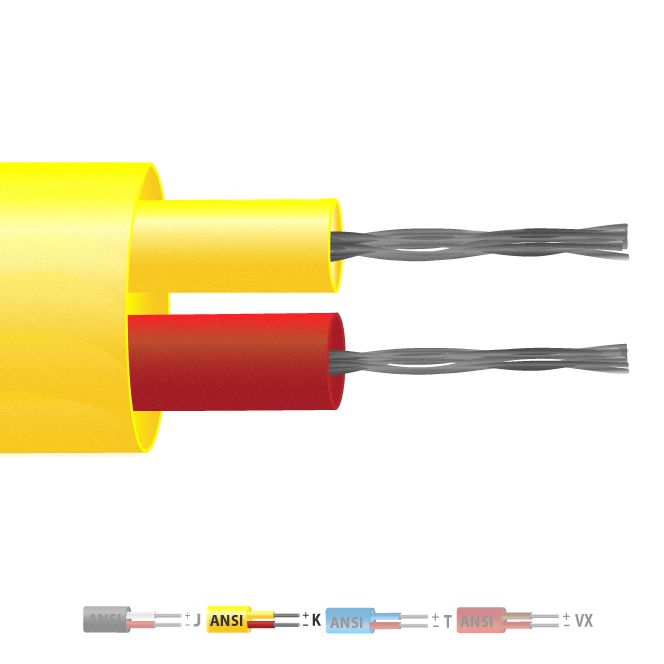

Type K PVC Insulated Flat Pair Thermocouple Cable / Wire (ANSI)

Change Currency

SKU
XE-2807
£13.44 £11.20
Lead Time:
Select Options
Weight:
0g
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Type K PVC Insulated Flat Pair Thermocouple Cable / Wire (ANSI)

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

Specifications

General DescriptionGood general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length10, 25, 50, 100 & 200m
Cable TypeFlat pair construction
Core / Strands7/0.2mm
Conductor Cross Section 7/0.2 (mm2)0.219
Outer ColourYellow
+ ColourYellow
- ColourRed
Drain WireNo
Insulation MaterialPVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre)4.5
Max. Temperature+105°C
Min. Temperature-10°C
+ ConductorNickel Chromium
- ConductorNickel Aluminium
ScreenNo
Standards MetColour code (cores & jacket) to ANSI MC96.1
Thermocouple TypeK
ToleranceClass 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
