Thermocouple Cable / Wire Type K PVC Insulated Flat Pair (BS)

Change Currency

SKU
WK-010-D
£1.25 £1.04
Lead TIme:
In-Stock, sold by the metre
Weight:
500g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:

Thermocouple Cable / Wire Type K PVC Insulated Flat Pair (BS)

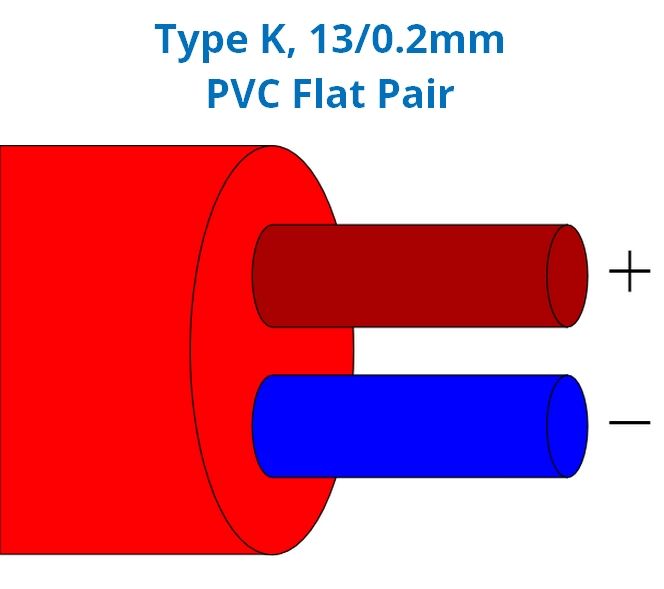

Image is for colour coding illustration only

Price is per metre - please add required quantity for basket. Only 613 metres left in stock

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

Specifications

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length Priced per metre
Cable Type Flat pair construction
Core / Strands 13/0.2mm
Outer Colour Red
+ Colour Brown
- Colour Blue
Insulation Material PVC Insulated
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Standards Met BS
Thermocouple Type K
Tolerance Class 2
