- UNIVERSAL INPUT
- FLOW TOTALISER FUNCTIONS
- 6 DIGIT DISPLAY
- OPTIONAL RELAY & ANALOGUE OUTPUTS
- RS485 SERIAL MODBUS COMMS
- IP65 SEALED FRONT
- BATCH CONTROL FUNCTIONS
- CUSTOM MATHS FUNCTIONS WITH TFML
- UL APPROVED

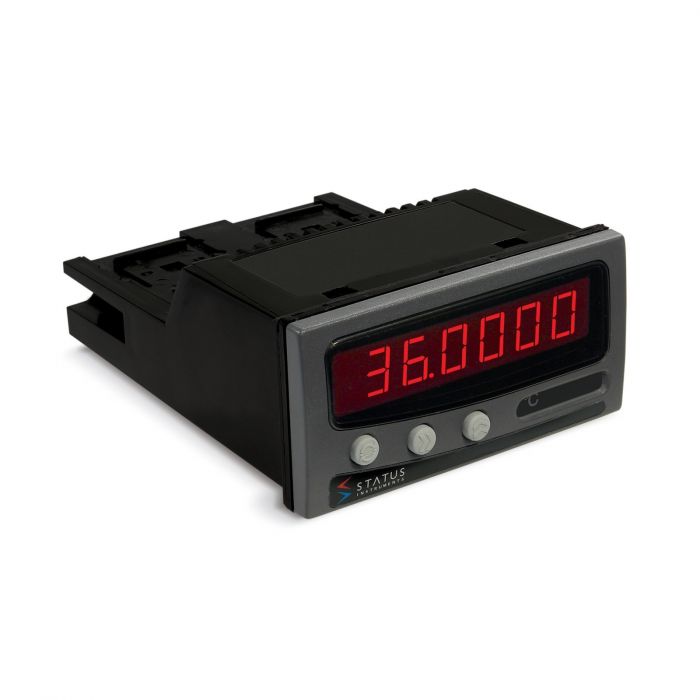

The DM3600 is an intelligent digital panel meter that can accept inputs from a wide variety of sensors and display the
signal digitally. In addition, it has the facility to accept up to two option ‘Pods’ which can be either isolated (4 to 20)
mA re-transmission or two alarm relays.
The DM3600 is available in two models. The DM3600U which is a universal input panel indicator and the DM3600A, a
universal panel indicator with totaliser functions.
All functions are programmable via the integral front panel keys or via the optional RS485 serial communications port
using the Modbus protocol.
The DM3600 supports TFML (Transfer Function Module Library) i.e the ability to download custom functionality by
means of standard modules available from the web site. This allows pre-written or custom control functions to be
quickly and easily incorporated.
The DM3600A totaliser function enables non-volatile storage of the integrated total to be maintained within the unit,
even after loss of power. Output options can be selected to operate on Process Variable (PV) or Total.
TRANSFER FUNCTION MODULE LIBRARY (TFML)
TFML has been designed to offer the user enhanced power and
flexibility by providing a mechanism whereby each unit can be
customised to perform a particular function.
Common Modules are listed below and are available from our
website www.status.co.uk. They are simply down-loaded into
the DM3600 unit.
