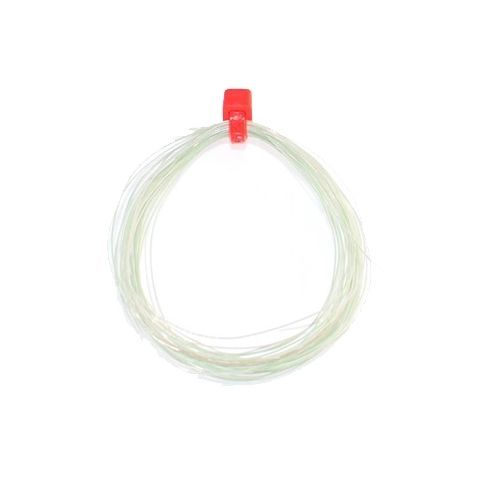

PFA Insulated IEC Fine Gauge Exposed Junction Thermocouple (0.076mm conductors) - Type K - 2M Length
Change Currency
SKU
XE-3511-001
£34.34
£28.62
- Buy 2 - 4 for £25.51 £21.26 each
- Buy 5+ for £20.39 £16.99 each
Thermocouple type K. Fast response, welded exposed junction available with bare tails. Ideal for test & development applications.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information |
|---|
Specifications
| General Description | Fast response, welded tip exposed junction |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K IEC |
| Cable Length | 2M |
| Cable Type | Teflon® PFA insulated wires |
| Core / Strands | 0.003" (0.076mm) conductors |
| Termination Type | Bare Tails |
| Max. Temperature | 260°C |
| Min. Temperature | -75°C |
| Standards Met | IEC-584-3 |
