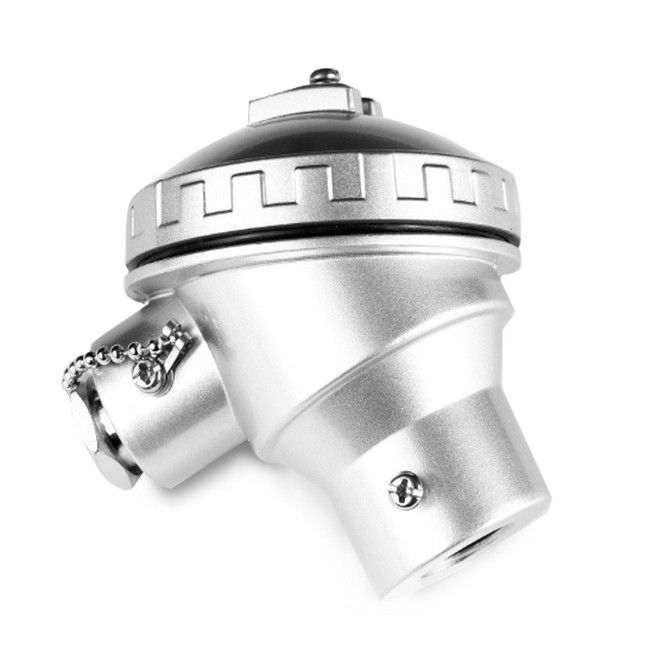

KNE Terminal Head
Many alternative types of terminal heads are available to meet the requirements of various applications.
Variations exist in size, material, accommodation, resistance to media, resistance to fire or even explosion and in other parameters.
|Head Type||KNE Standard Head|
|Material||Aluminium silver painted|
|Cable Entry||M20 x 1.5mm|
|Fixing (Centres)||33mm & 40mm|
|IP Rating||IP67 rated|
|Process Entry||1/2" BSPP, 3/4" BSPP or M24|
|Cap Retaining Type||Screw cap and retaining screw|
