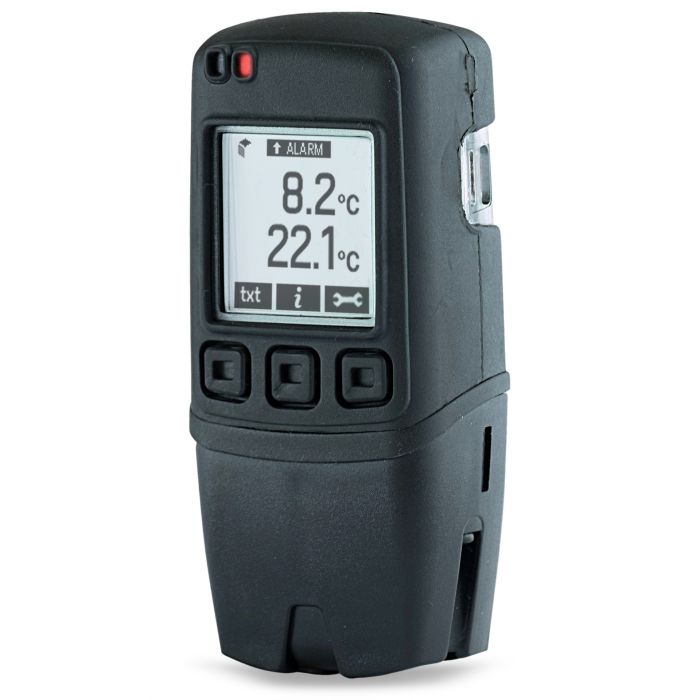

Lascar EL-GFX-DTC Data Logger with dual K probe and graphic screen

Change Currency

SKU
XE-3972-001
£161.99 £134.99
Lead Time:
5 - 7 working days
Weight:
700g
Tariff Code:
90330000
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Dual Channel Thermocouple Data Logger with Graphic Screen

  • Dual channel, compatible with K, J and T type Thermocouples
  • Logging rates between 1 second and 1 hour
  • Immediate, delayed, push-button or temperature triggered start mode
  • Graphic LCD shows real-time readings, graph and current status
  • Stores over 250,000 readings

The EL-GFX-DTC standalone USB data logger measures and stores over 250,000 temperature readings from two J, K, or T-type thermocouple inputs at a resolution of 0.1ºC. Using the Windows control software, users can quickly set up the data logger and view downloaded data by connecting the device to the PC’s USB port using the supplied cable.

The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.

The two replaceable ½AA batteries typically allow logging for up to one year.

Application Information

The EL-GFX-DTC is suitable for a wide variety of applications, these include:

  • Pharmaceutical fridge monitoring
  • Transportation
  • Food & drink
  • Building & site monitoring
  • HVAC
General Description This stand-alone data logger measures and stores over 250,000 temperature readings over a -30 to +80°C (-22 to +176°F) range at a resolution of 0.1°C
Accuracy ±0.5°C (±0.2°F)
Resolution of data display High contrast dot-matrix LCD
Dimensions 88 x 48.5 x 30.5mm (3.46 x 1.90 x 1.20”)
Max. Temperature 80°C (176°F)
Min. Temperature -30°C (-22°F)
Power Consumption Battery Life: 4 months
Power Supply BAT 3V6 1/2AA (included)
